Home / Lenses / Machine vision lenses / 2× lens, 2/3", C-Mount

2× lens, 2/3", C-Mount (LS-FFL-0040)

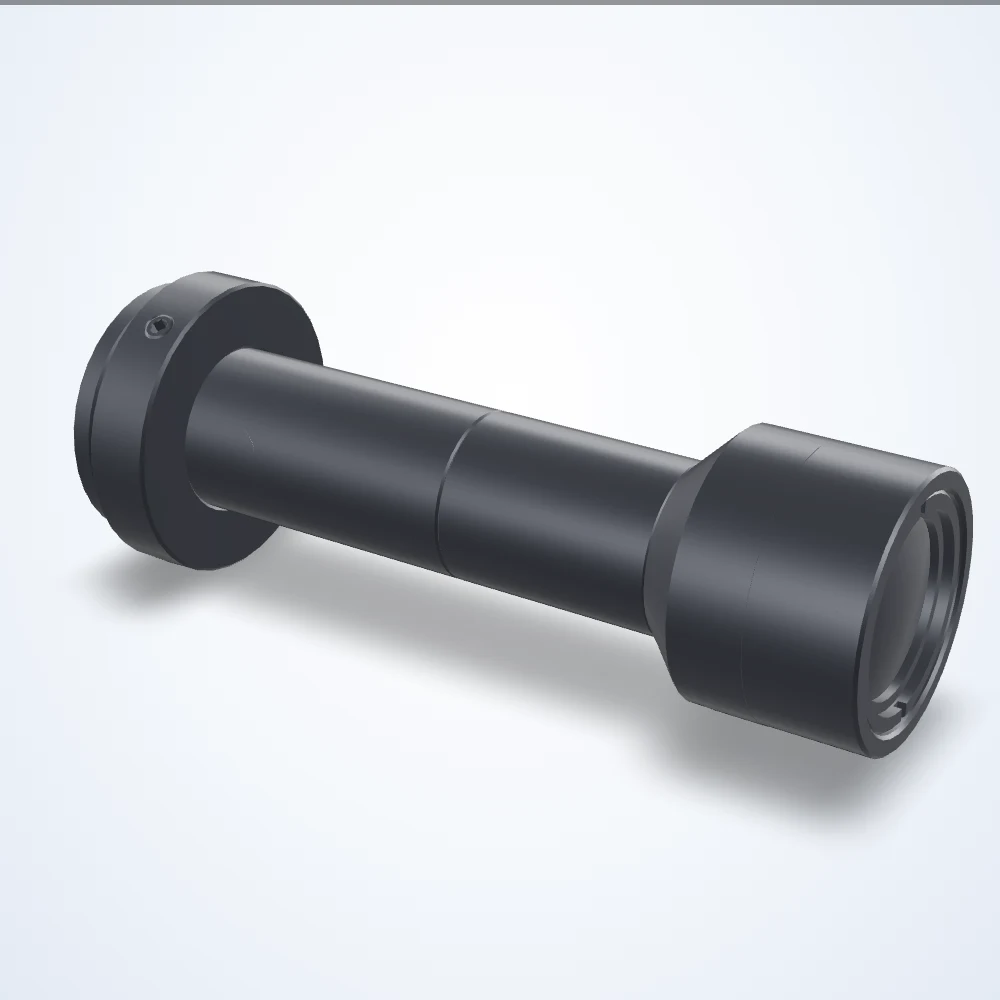

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

2× lens, 2/3", C-Mount (LS-FFL-0040)

Model LS-FFL-0040

2× lens, 2/3", C-Mount. Depth of field 0.26 mm. Minimum object distance 65.4 mm.

3D model (STEP) - LS-FFL-0040

Specifications

Model	LS-FFL-0040
Depth Of Field	0.26 mm
Filter Thread	No Filter Threads
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Magnification	2×
Minimum Object Distance	65.4 mm
Mount	C-Mount
Resolution (MP)	2
Resolution (Pixel Size)	4.4 μm
Working ƒ/N	f/12.8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
