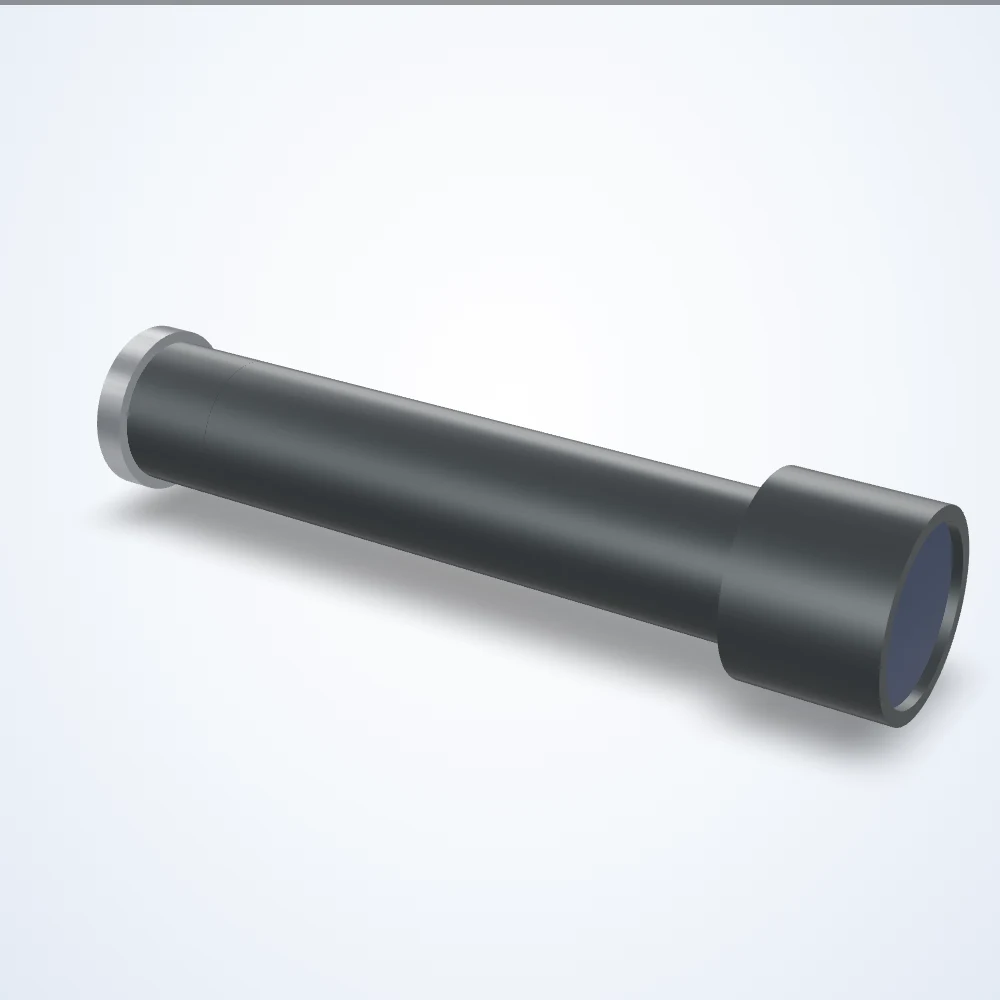

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
0.8× lens, 2/3", C-Mount (LS-FFL-0034)
Model LS-FFL-0034
0.8× lens, 2/3", C-Mount. Depth of field 1.31 mm. Minimum object distance 111 mm.
Specifications
| Model | LS-FFL-0034 |
|---|---|
| Depth Of Field | 1.31 mm |
| Image Circle Diameter | 11 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.8× |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 8.8 μm |
| Working ƒ/N | f/10.2 |
| Aperture (F) | 10.2 (effective) |
| Max. sensor format | 2/3" |
| Distortion | -0.027% (TV, 2/3") |
| Mount | C |
| Weight (g) | 103 |
| Dimensions (dia. x length, mm) | 30 x 126.1 |
| Type | 2 MP telecentric lens, straight type |
| NA | 0.038 |
| Max image format | Ø11 mm |
| Resolving power | 8.8 µm (calculated at 550 nm) |
| Back focal length | 17.0 mm |
| Flange back length | 17.526 mm (in air) |
| Filter size | - |
| Dimensions (table) | Ø30 mm x 126.1 mm |
| Operating temperature | -10 to +50 °C |
| Object to image (O/I) | 254.6 mm |
| Rear mount ring diameter | Ø29 |
| Screws | 3-M3x3 socket head (mount ring) |
| FOV by format | 2/3": 11.0 x 8.2 mm; 1/1.8": 8.9 x 6.6 mm; 1/2": 8.0 x 6.0 mm; 1/3": 6.0 x 4.5 mm |
