Home / Lenses / Machine vision lenses / 75 mm lens, 2/3", C-Mount

75 mm lens, 2/3", C-Mount (LS-FFL-0029)

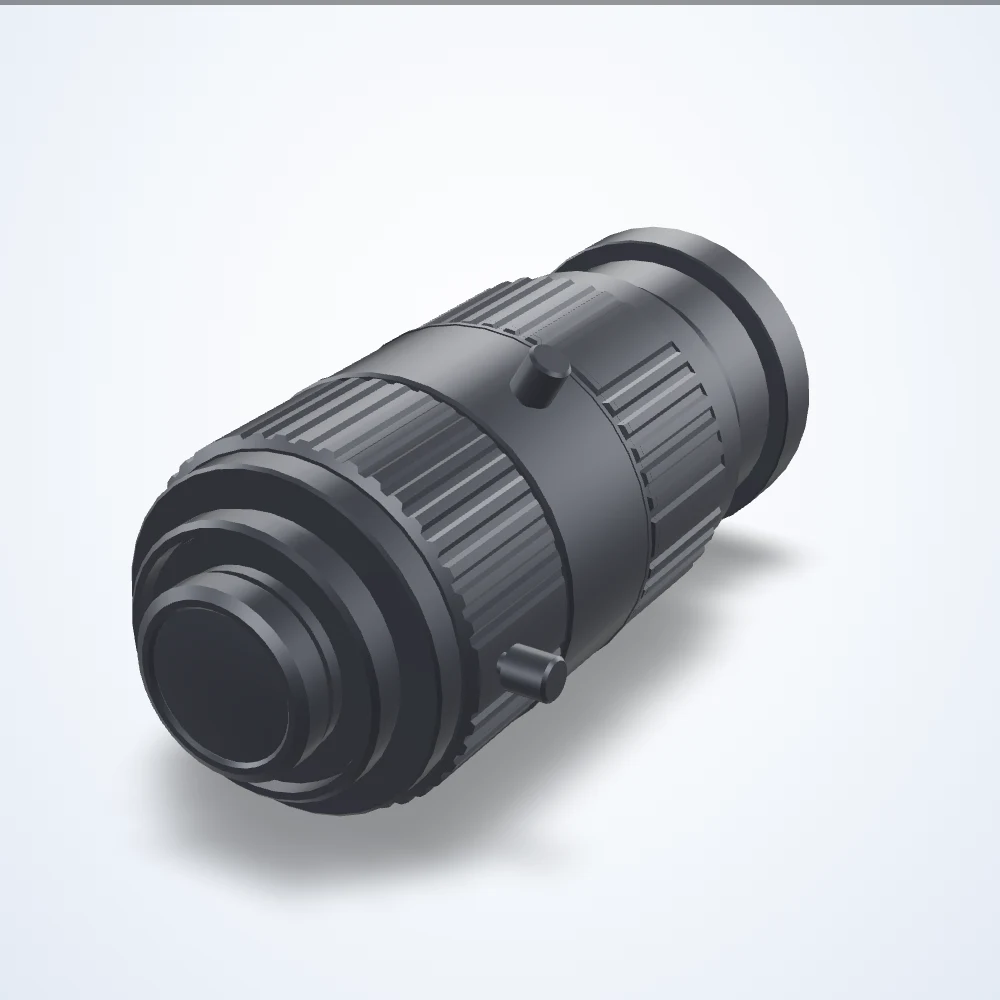

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

75 mm lens, 2/3", C-Mount (LS-FFL-0029)

Model LS-FFL-0029

75 mm lens, 2/3", C-Mount. Minimum object distance 300 mm. Aperture f/2.8 to f/16.

Datasheet (PDF) - LS-FFL-0029 3D model (STEP) - LS-FFL-0029

Specifications

Model	LS-FFL-0029
Filter Thread	M30.5-0.5
Focal Length	75 mm
Focus Range	0.3 m - ∞
Front Diameter	24.8 mm
Image Circle Diameter	11 mm
Image Size Dimensions	8.8 mm x 6.6 mm
Imager Format	2/3"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	300 mm
Mount	C-Mount
Resolution (MP)	1.5
ƒ/N Max	f/2.8
ƒ/N Min	f/16
