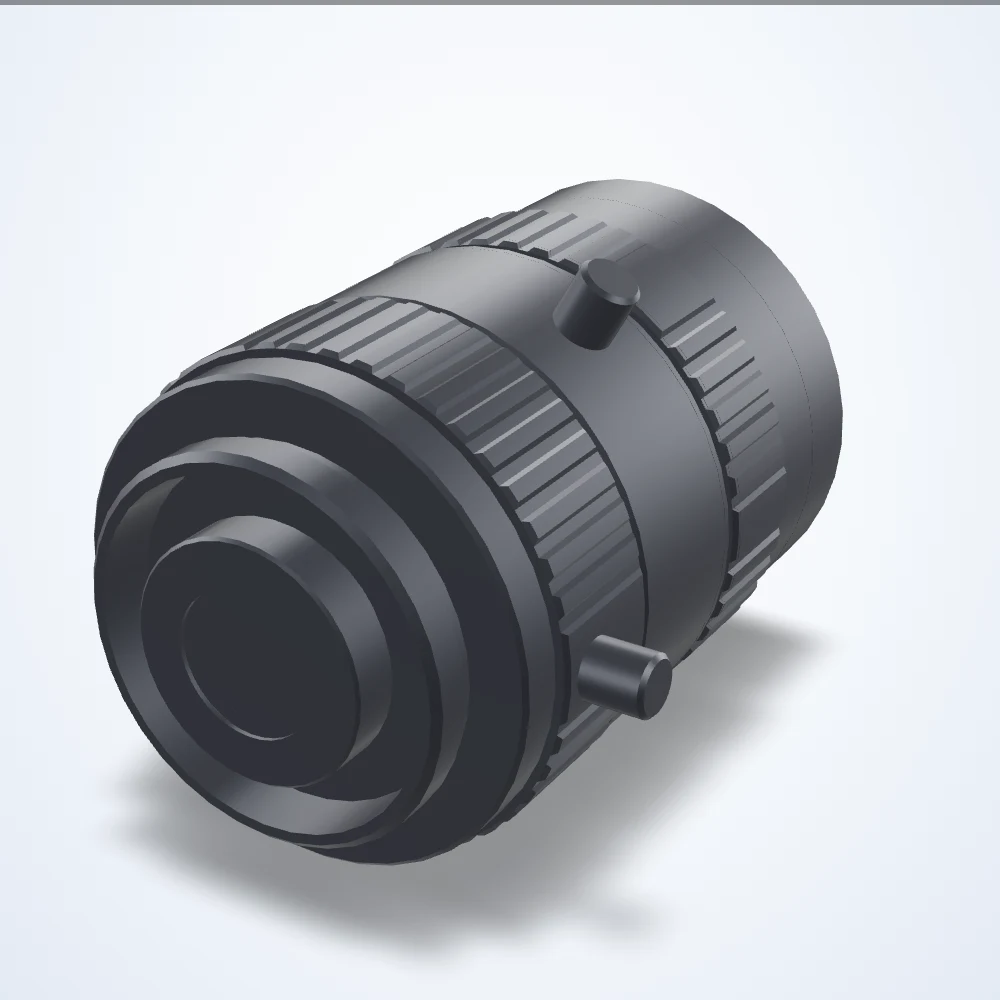

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount (LS-FFL-0027)
Model LS-FFL-0027
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
Specifications
| Model | LS-FFL-0027 |
|---|---|
| Focal length | 50 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 500 mm |
| Aov @ 1/2″ h°×v°×d° | 7.6 × 5.7 × 9.5° |
| Aov @ 2/3″ h°×v°×d° | 10.5 × 7.9 × 13.1° |
| Aperture (max) | f/1.8 |
| Back focal length | 13.1 mm |
| Dimensions | 33.5 × 33.5 × 38.2 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Front diameter | 25.5 mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 9.6 mm |
| Resolution (MP) | 1.5 |
| Spectrum | Visible |
| Zoom range | Fixed |
| Weight | 85 |
