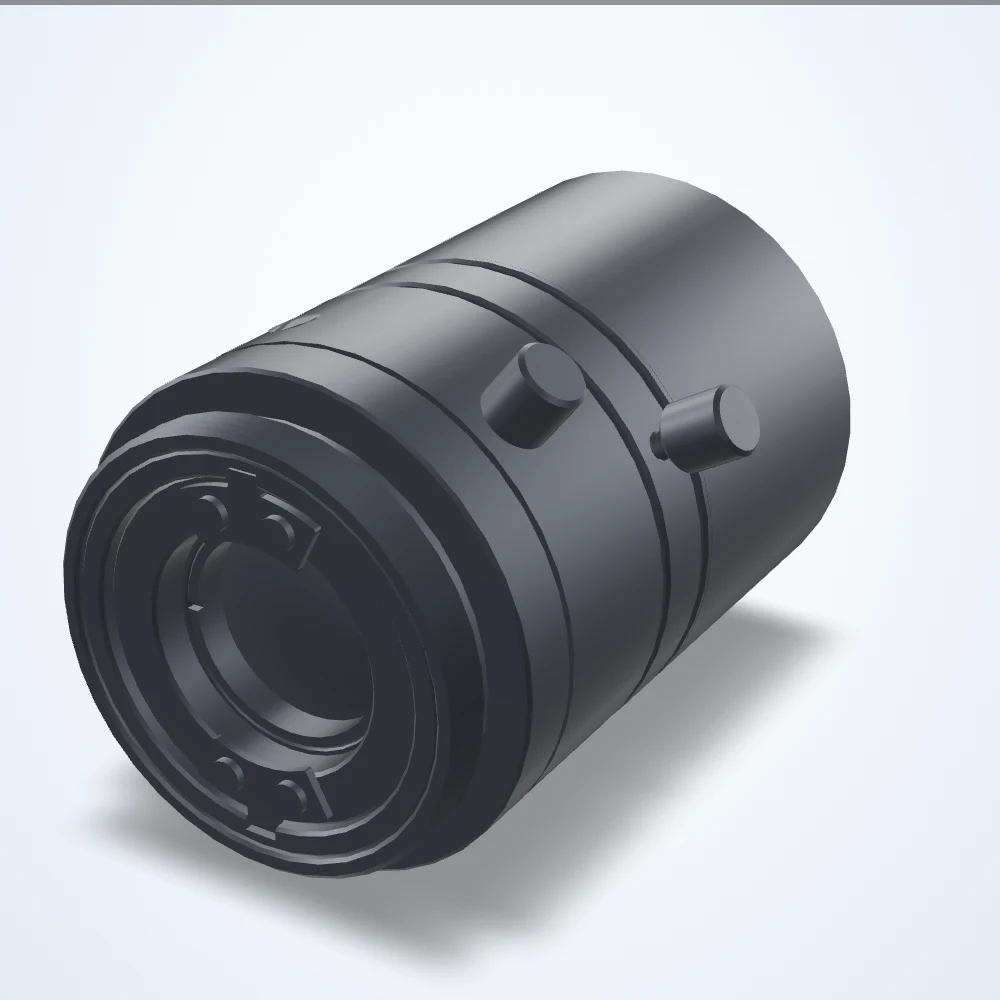

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount (LS-FFL-0026)
Model LS-FFL-0026
Machine vision lens for industrial cameras. Minimum object distance 250 mm.
Specifications
| Model | LS-FFL-0026 |
|---|---|
| Focal length | 35 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 250 mm |
| Aov @ 1/1.8″ h°×v°×d° | 11.7 × 8.7 × 14.4° |
| Aov @ 1/2.5″ h°×v°×d° | 9.3 × 7 × 11.6° |
| Aperture (max) | f/2.8 |
| Back focal length | 18 mm |
| Dimensions | 29 × 29 × 39 mm |
| Filter thread | M27-0.5 |
| Flange back length | 17.526 mm |
| Focus control | Manual |
| Focus range | 0.25 m - ∞ |
| Front diameter | 17.8 mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 11.8 mm |
| Resolution (MP) | 6 |
| Spectrum | Visible |
| Tv distortion (%) | 0.06 |
| Zoom range | Fixed |
| Weight | 48 |
