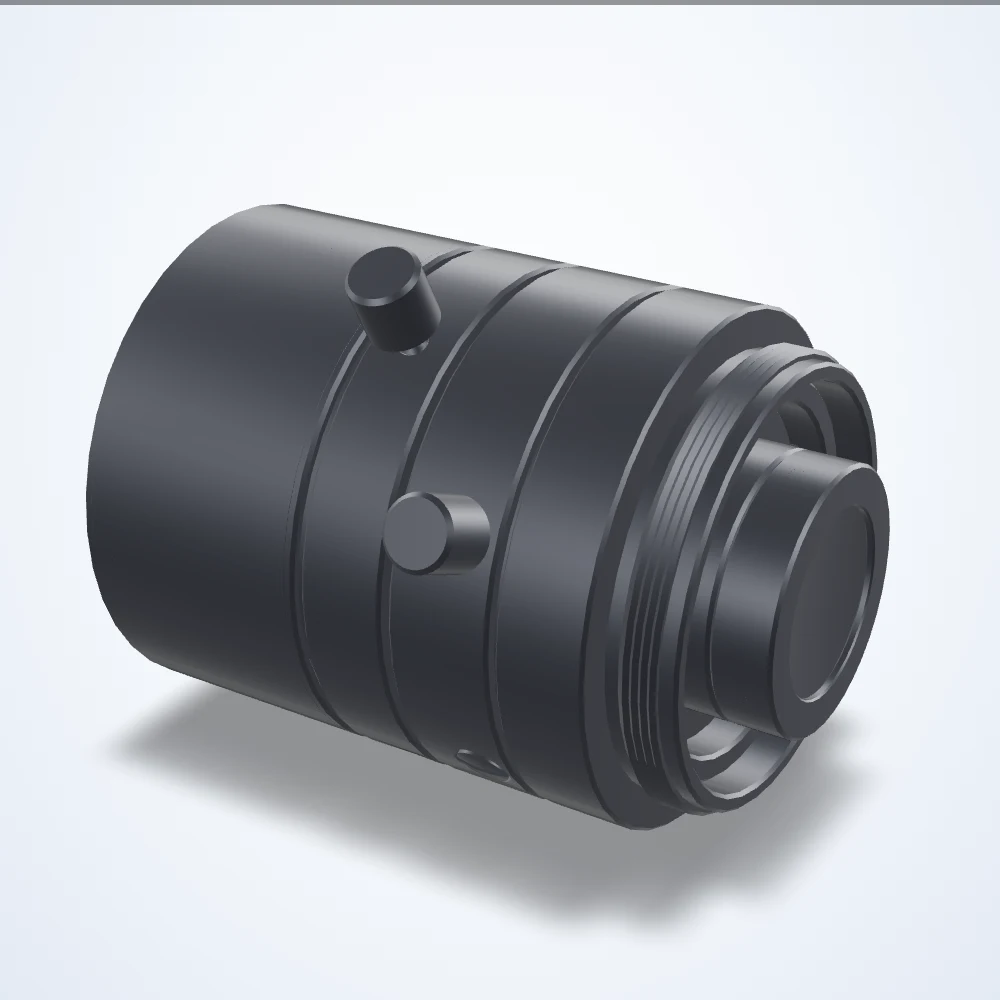

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-mount (LS-FFL-0024)
Model LS-FFL-0024
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
Specifications
| Model | LS-FFL-0024 |
|---|---|
| Focal length | 25 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Minimum object distance | 200 mm |
| Aov @ 1/1.8″ h°×v°×d° | 16.3 × 12.3 × 20.3° |
| Aov @ 1/2.5″ h°×v°×d° | 13 × 9.8 × 16.1° |
| Aperture (max) | f/2.8 |
| Back focal length | 11.5 mm |
| Dimensions | 29 × 29 × 32 mm |
| Filter thread | M27-0.5 |
| Flange back length | 17.526 mm |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 14.1 mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 10.5 mm |
| Resolution (MP) | 6 |
| Spectrum | Visible |
| Tv distortion (%) | 0.77 |
| Zoom range | Fixed |
| Weight | 42 |
