Home / Lenses / Machine vision lenses / 12 mm lens, 2/3", C-Mount

12 mm lens, 2/3", C-Mount (LS-FFL-0021)

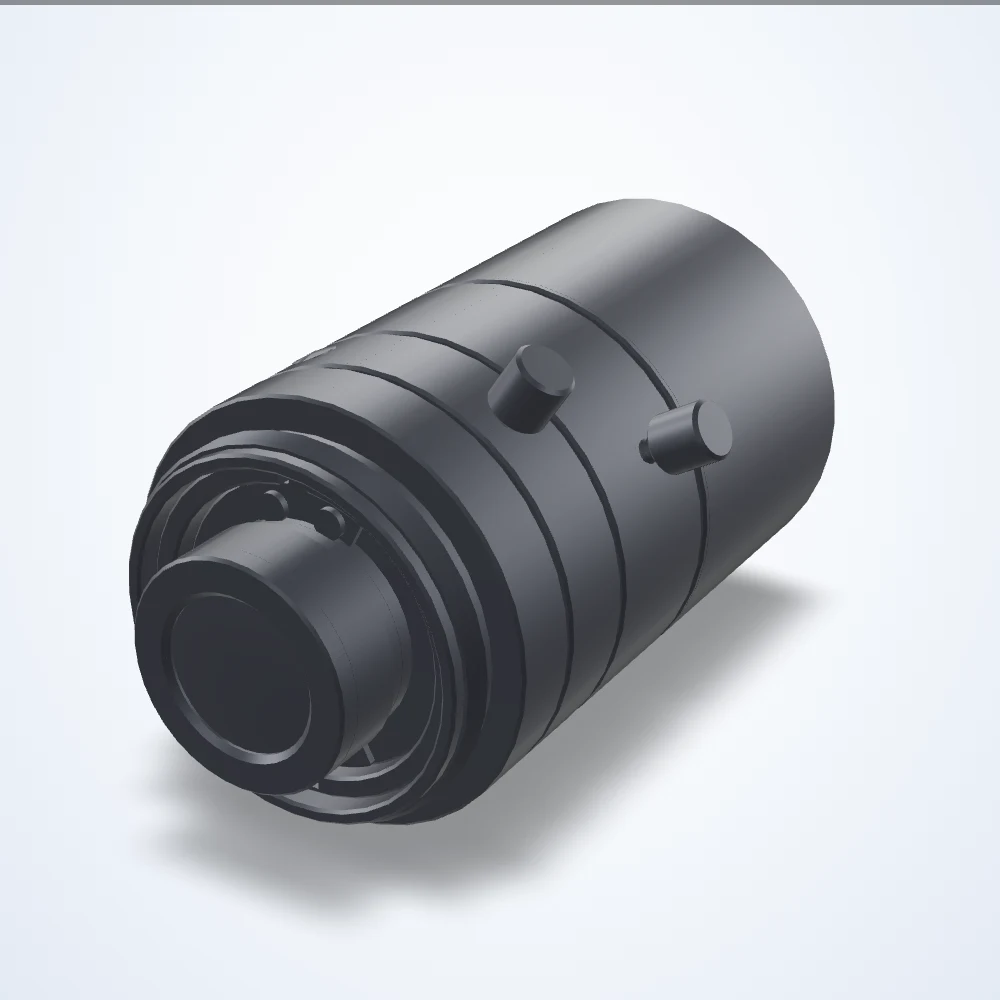

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

12 mm lens, 2/3", C-Mount (LS-FFL-0021)

Model LS-FFL-0021

12 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/2.8 to f/16.

3D model (STEP) - LS-FFL-0021

Specifications

Model	LS-FFL-0021
Filter Thread	M27-0.5
Focal Length	12 mm
Focus Range	0.1 m - ∞
Front Diameter	18.8 mm
Image Circle Diameter	11 mm
Image Size Dimensions	8.8 mm x 6.6 mm
Imager Format	2/3"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	100 mm
Mount	C-Mount
Resolution (MP)	6
Resolution (Pixel Size)	2.74 μm
ƒ/N Max	f/2.8
ƒ/N Min	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
