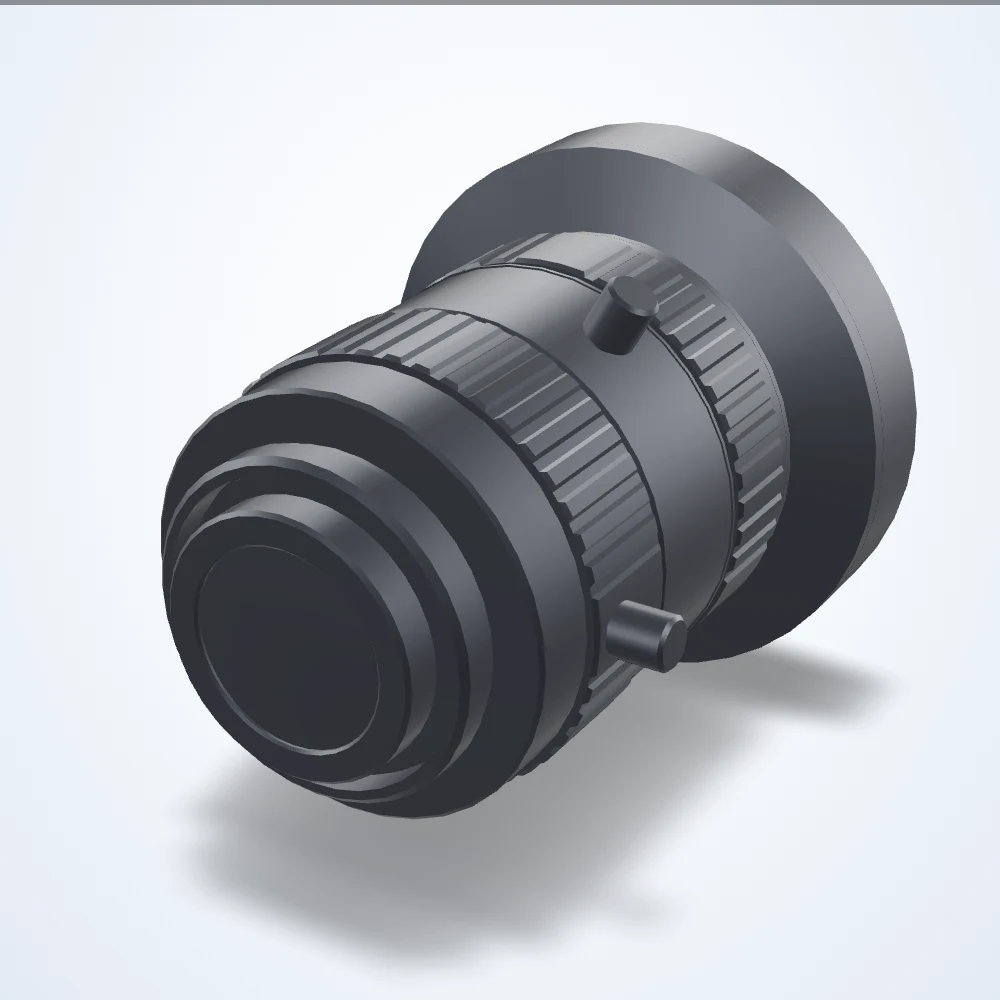

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5 mm lens, 1/2", C-mount (LS-FFL-0016)
Model LS-FFL-0016
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
Specifications
| Model | LS-FFL-0016 |
|---|---|
| Focal length | 5 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Minimum object distance | 100 mm |
| Aov @ 1/2″ h°×v°×d° | 65.5 × 51.4 × 76.7° |
| Aov @ 1/3″ h°×v°×d° | 51.4 × 39.5 × 62.3° |
| Aperture (max) | f/1.4 |
| Back focal length | 10.8 mm |
| Dimensions | 44.5 × 44.5 × 45.5 mm |
| Filter thread | M43-0.75 |
| Focus control | Manual |
| Focus range | 0.1 m - 0.9 m |
| Front diameter | 27.8 mm |
| Image circle | 8 mm |
| Image size dimensions | 6.4 mm x 4.8 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 14.8 mm |
| Resolution (MP) | 1.5 |
| Spectrum | Visible |
| Zoom range | Fixed |
| Weight | 102 |
