Machine vision lenses

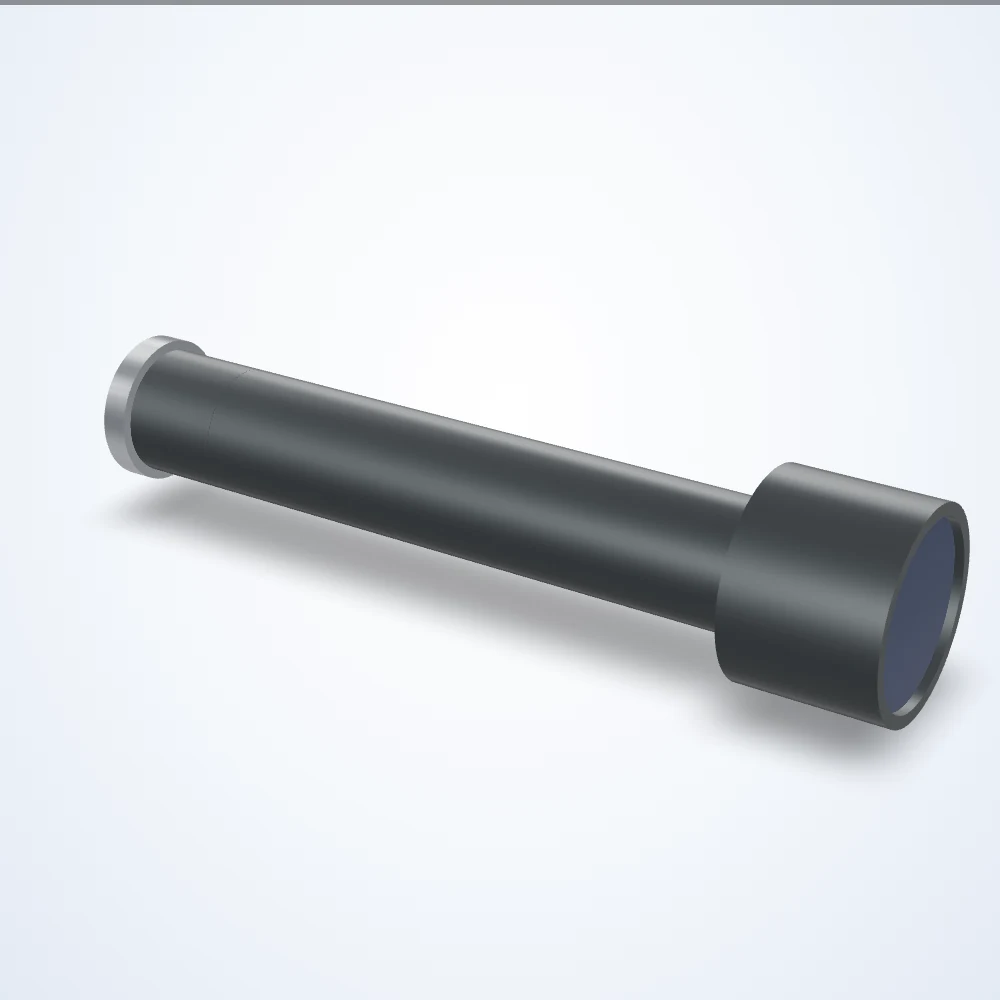

3× lens, 2/3", C-mount (LS-FFL-0011)
Model LS-FFL-0011
Machine vision lens for industrial cameras. Depth of field 0.14 mm; field of view 2.93 x 2.2 mm (2/3").
Specifications
| Model | LS-FFL-0011 |
|---|---|
| Magnification | 3.0X |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 16.0 (effective) |
| Field of view | 2.93 x 2.2 mm (2/3") |
| Depth of field | 0.14 mm |
| Distortion | 0.008% (TV, 2/3") |
| Operating temperature | 0 to +40 °C |
| Back focal length | 17.0 mm |
| Coaxial illumination port | Ø8 / Ø14.2 / Ø15.8, 34 mm below axis |
| Dimensions (dia. x length, mm) | 35 x 144 |
| FOV by format | 2/3": 2.93 x 2.2 mm; 1/1.8": 2.39 x 1.77 mm; 1/2": 2.13 x 1.6 mm; 1/3": 1.6 x 1.2 mm |
| Filter size | - |
| Flange back length | 17.526 mm |
| Image circle | 12.8 mm |
| Lens type | Coaxial |
| Max image format | Ø12.8 mm |
| NA | 0.094 |
| Object to image (o/i) | 272.9 mm |
| Operating temperature range | -10 to +50 °C |
| Rear mount ring diameter | Ø29 |
| Resolution (MP) | 2 |
| Resolving power | 3.6 µm |
| Screws | 3-M3x3 socket head (mount ring), 1-M3x4 socket head (coaxial port) |
| Spectrum | Visible |
| Tv distortion (%) | 0.008 |
| Type | 2 MP telecentric lens, coaxial type |
| Working distance (mm) | 111.4 |
| Working distance tolerance | 111.4 ± 3.3 mm |
| Working ƒ/n | f/16 |
| Zoom range | Fixed |
| Weight (g) | 166 |
