Home / Lenses / Machine vision lenses / 1.5× lens, 2/3", C-Mount

1.5× lens, 2/3", C-Mount (LS-FFL-0008)

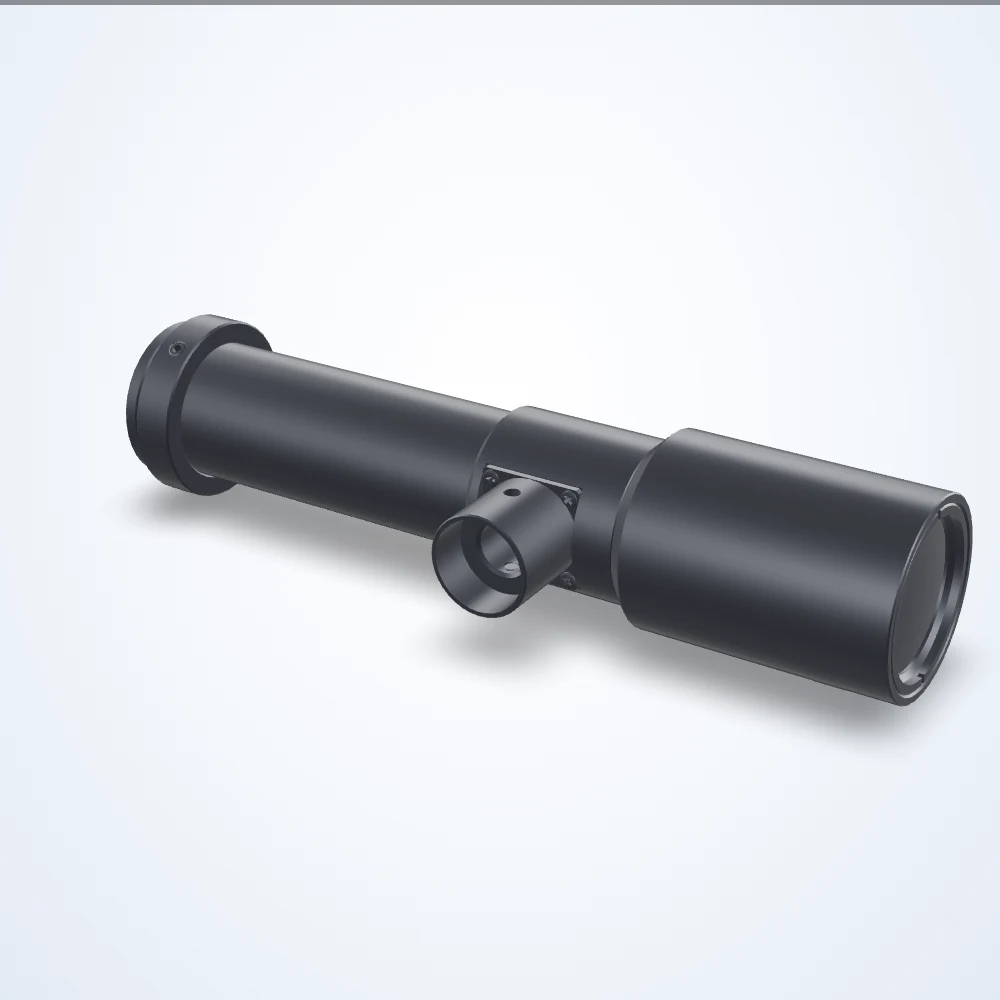

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

1.5× lens, 2/3", C-Mount (LS-FFL-0008)

Model LS-FFL-0008

1.5× lens, 2/3", C-Mount. Depth of field 0.42 mm. Minimum object distance 110.7 mm.

Datasheet (PDF) - LS-FFL-0008 3D model (STEP) - LS-FFL-0008

Specifications

Model	LS-FFL-0008
Depth Of Field	0.42 mm
Filter Thread	No Filter Threads
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Coaxial
Light Spectrum	Visible
Magnification	1.5×
Minimum Object Distance	110.7 mm
Mount	C-Mount
Resolution (MP)	2
Resolution (Pixel Size)	5.2 μm
Working ƒ/N	f/9.4
