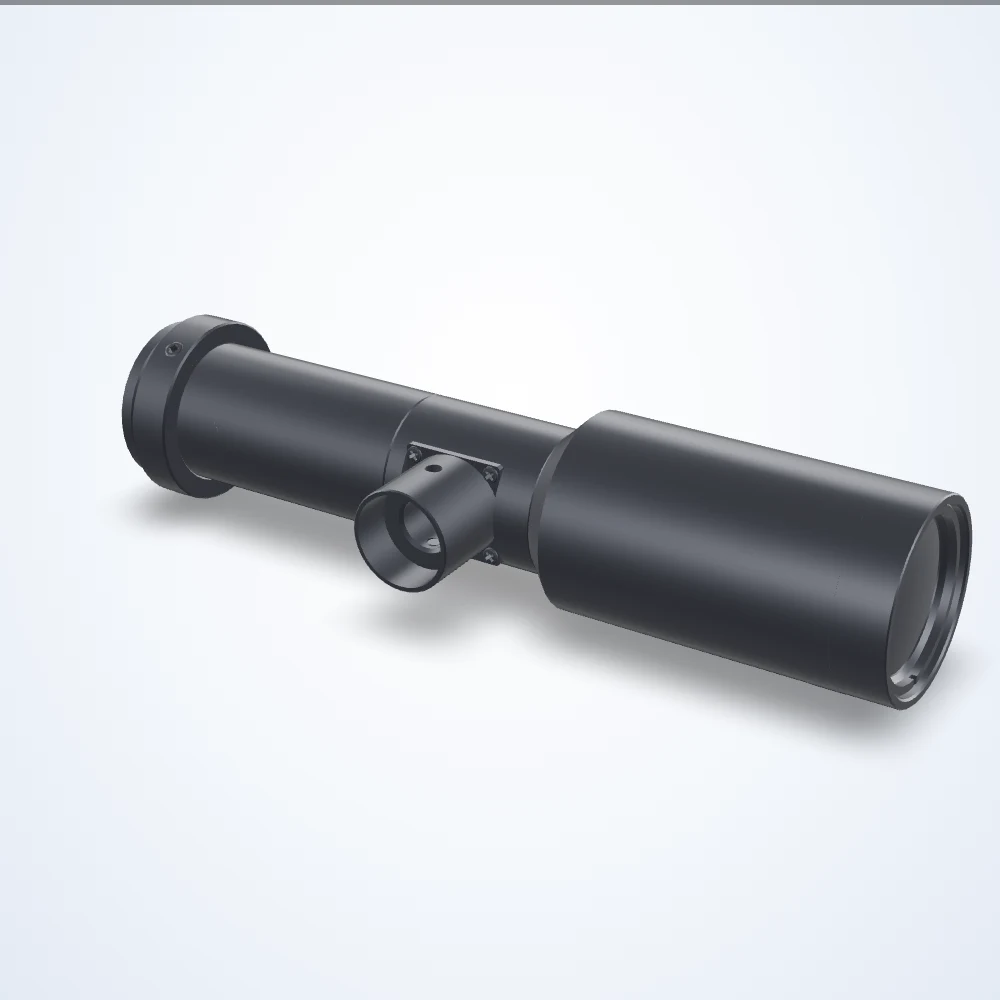

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
1× lens, 2/3", C-mount (LS-FFL-0006)
Model LS-FFL-0006
Machine vision lens for industrial cameras. Depth of field 0.82 mm; minimum object distance 111.5 mm.
Specifications
| Model | LS-FFL-0006 |
|---|---|
| Magnification | 1× |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.82 mm |
| Minimum object distance | 111.5 mm |
| Back focal length | 17 mm |
| Dimensions | 30 × 30 × 126.7 mm |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
| Lens type | Coaxial |
| Operating temperature range | -10 to +50 °C |
| Resolution (MP) | 2 |
| Spectrum | Visible |
| Tv distortion (%) | -0.003 |
| Working ƒ/n | f/10.1 |
| Zoom range | Fixed |
| Weight | 108 |
