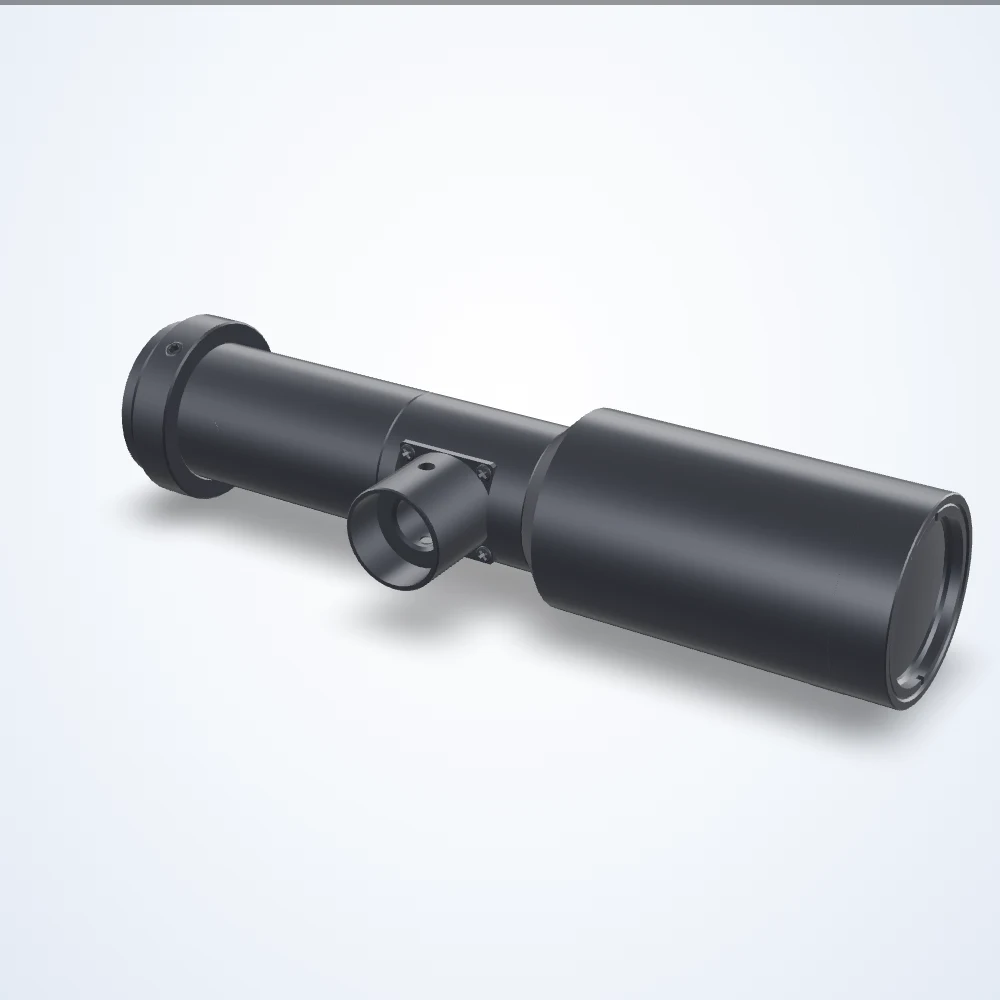

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
0.8× lens, 2/3", C-mount (LS-FFL-0004)
Model LS-FFL-0004
Machine vision lens for industrial cameras. Depth of field 1.31 mm; minimum object distance 111 mm.
Specifications
| Model | LS-FFL-0004 |
|---|---|
| Magnification | 0.8× |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 1.31 mm |
| Minimum object distance | 111 mm |
| Back focal length | 17 mm |
| Dimensions | 30 × 30 × 126.1 mm |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
| Lens type | Coaxial |
| Operating temperature range | -10 to +50 °C |
| Resolution (MP) | 2 |
| Spectrum | Visible |
| Tv distortion (%) | -0.027 |
| Working ƒ/n | f/10.2 |
| Zoom range | Fixed |
| Weight | 106 |
