Home / Lenses / Machine vision lenses / 0.5× lens, 2/3", C-Mount

0.5× lens, 2/3", C-Mount (LS-FFL-0002)

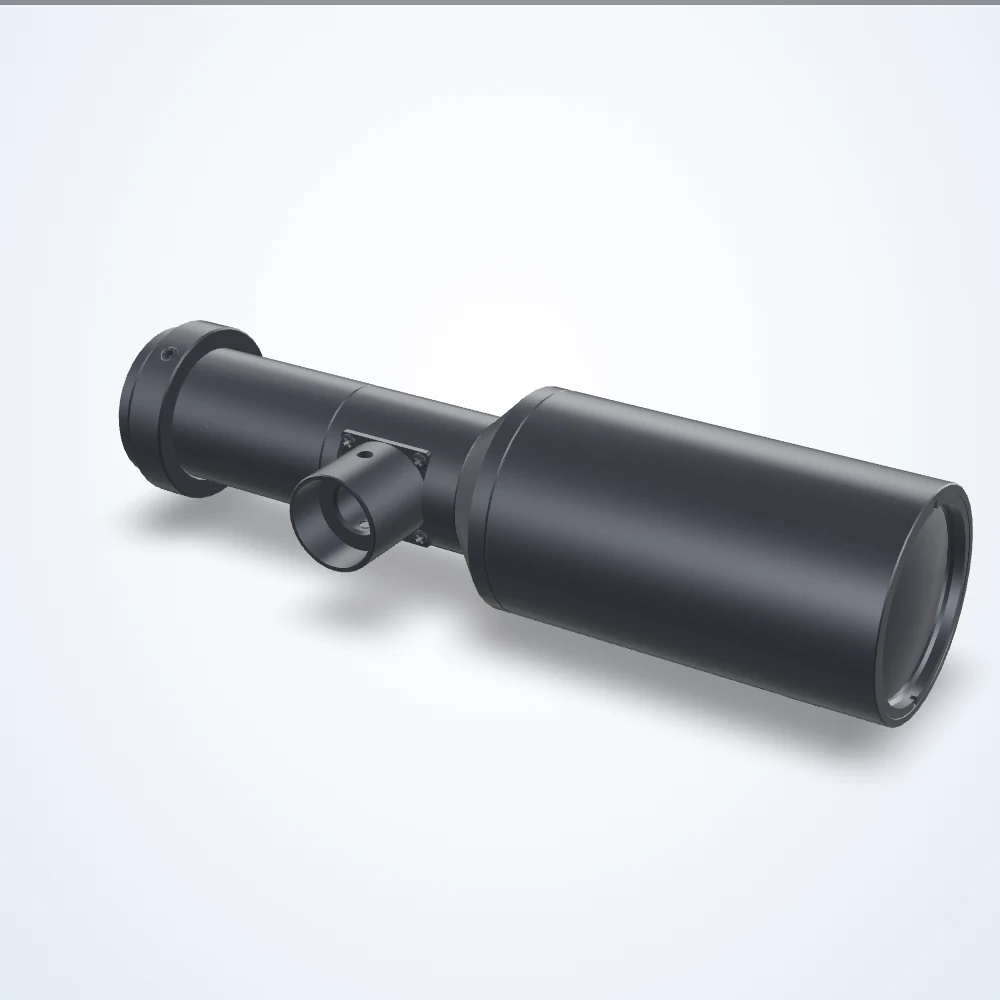

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

0.5× lens, 2/3", C-Mount (LS-FFL-0002)

Model LS-FFL-0002

0.5× lens, 2/3", C-Mount. Depth of field 3.03 mm. Minimum object distance 111.8 mm.

Datasheet (PDF) - LS-FFL-0002 3D model (STEP) - LS-FFL-0002

Specifications

Model	LS-FFL-0002
Depth Of Field	3.03 mm
Filter Thread	No Filter Threads
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Coaxial
Light Spectrum	Visible
Magnification	0.5×
Minimum Object Distance	111.8 mm
Mount	C-Mount
Resolution (MP)	2
Resolution (Pixel Size)	12.7 μm
Working ƒ/N	f/9.4

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
