Shadowless lights

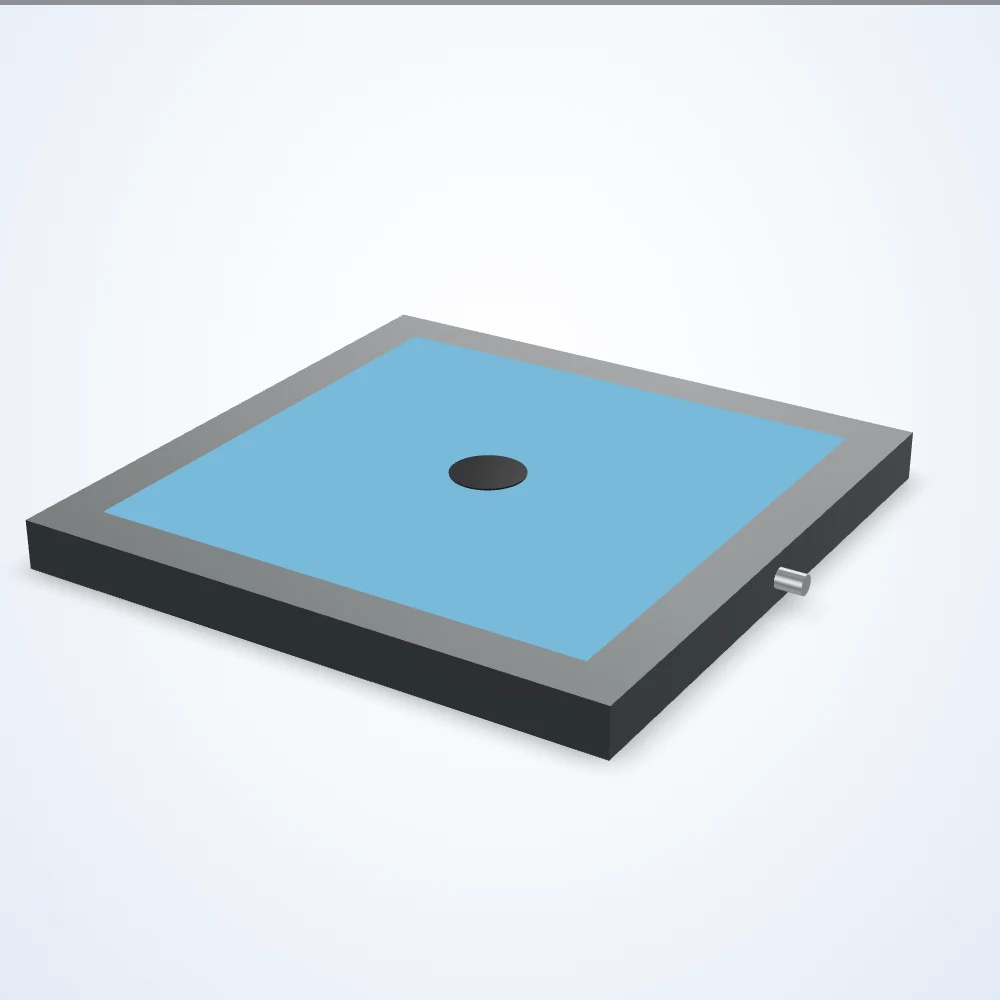

Flat dome light, 306-459 x 306-459 mm lit area (LS-FDL-0009)
Model LS-FDL-0009
Flat dome (shadowless) light: diffuse on-axis illumination from a thin panel with a camera viewport, for flat shiny parts and labels under film. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lit length, length, width below (10 configurations) and request a quote.
Specifications
| Model | LS-FDL-0009 |
|---|---|
| Lens / beam angle | Diffused |
| Lit width (mm) | 306 / 459 (by configuration) |
| Height (mm) | 30 |
| Viewport diameter (mm) | 45 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -18 to 40 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Diffused |
| Direct connect | No |
| Driver nomenclature | SVL Multi-Drive |
| Maximum constant on current (ma) | 1260 / 1980 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 1260 / 1980 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 30.2 / 47.5 (by configuration) |
| Maximum input power overcurrent strobe (w) | 30 / 48 (by configuration) |
| Maximum overcurrent strobe duration (ms) | 30 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (hz) | 4000 |
| Maximum overcurrent strobe latency (us) | 6 |
| Minimum overcurrent strobe duration (us) | 10 |
| NPN trigger current (ma) | 14 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 17.6 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -20 to 60 °C |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
