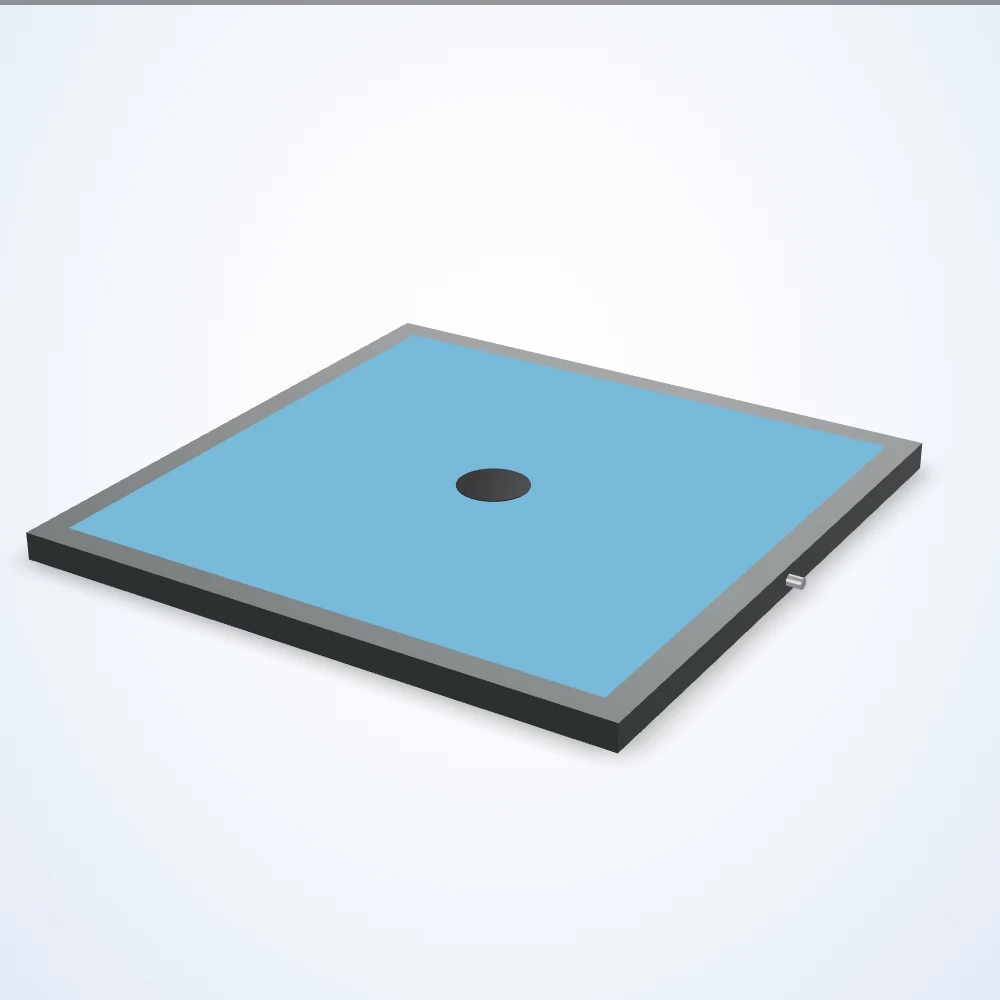

Rendered illustration: the actual product may differ in appearance.
Shadowless lights
Flat dome light, 612 x 612 mm lit area (LS-FDL-0006)
Model LS-FDL-0006
Flat dome (shadowless) light: diffuse on-axis illumination from a thin panel with a camera viewport, for flat shiny parts and labels under film. Lit area 612 x 612 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (5 configurations) and request a quote.
Specifications
| Model | LS-FDL-0006 |
|---|---|
| Lens / beam angle | Diffused |
| Lit length (mm) | 612 |
| Lit width (mm) | 612 |
| Length (mm) | 672 |
| Width (mm) | 672 |
| Height (mm) | 30 |
| Viewport diameter (mm) | 77.9 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -18 to 40 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Diffused |
| Direct connect | No |
| Driver nomenclature | SVL Multi-Drive |
| Maximum constant on current (ma) | 7200 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 172.8 |
| NPN trigger current (ma) | 15 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 20 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -20 to 60 °C |
| Compliance | CE, IEC 62471, RoHS |
