Shadowless lights

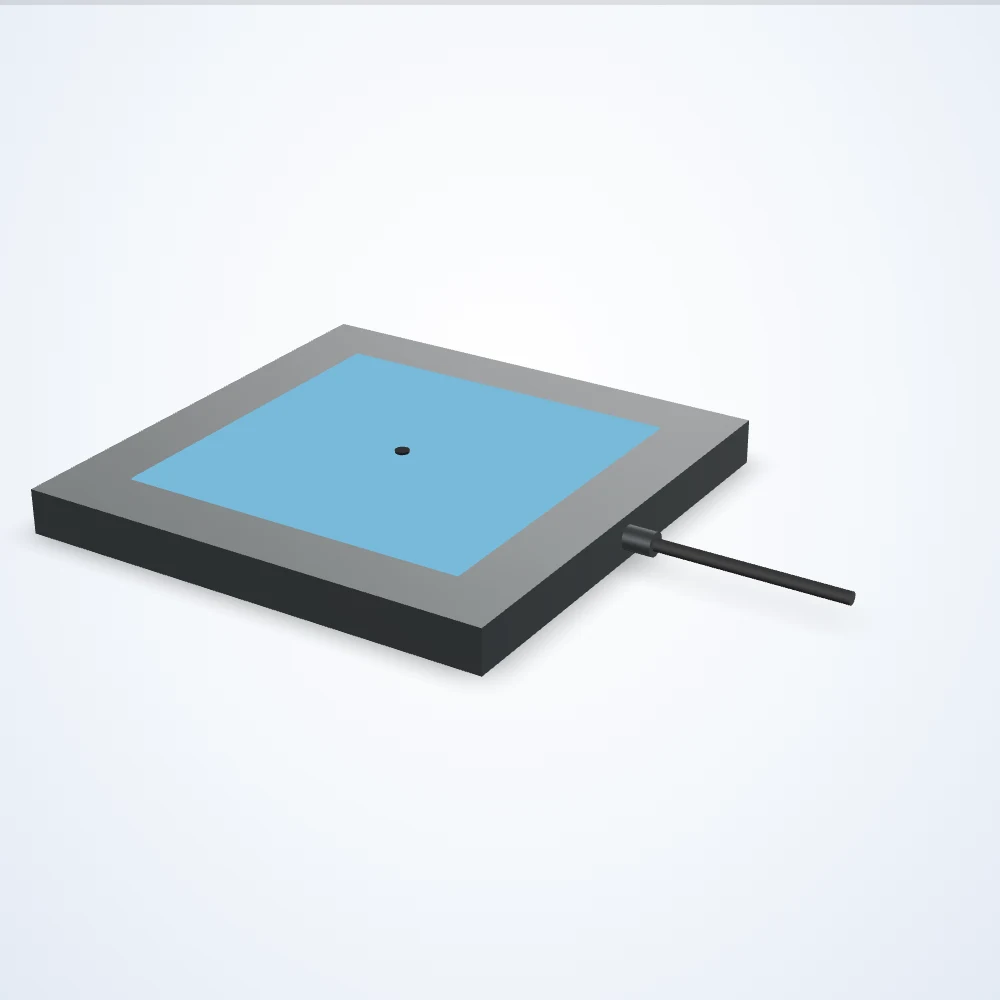

Flat dome light, 151.5 x 151.5 mm lit area (LS-FDL-0002-L4)
Model LS-FDL-0002-L4
Flat dome (shadowless) light: diffuse on-axis illumination from a thin panel with a camera viewport, for flat shiny parts and labels under film. Lit area 151.5 x 151.5 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (660 configurations) and request a quote.
Specifications
| Model | LS-FDL-0002-L4 |
|---|---|
| Lit length (mm) | 151.5 |
| Lit width (mm) | 151.5 |
| Length (mm) | 205.9 |
| Width (mm) | 205.9 |
| Height (mm) | 19.1 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Operating temperature | up to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / iCS2 - IC / iCS4 - I4 (by configuration) |
| Maximum constant on current (ma) | 606 / 909 / 1515 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 14.5 / 21.8 / 36.4 (by configuration) |
| Maximum input power overcurrent strobe (w) | 125 / 150 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 20 / 60 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
