Machine vision lenses

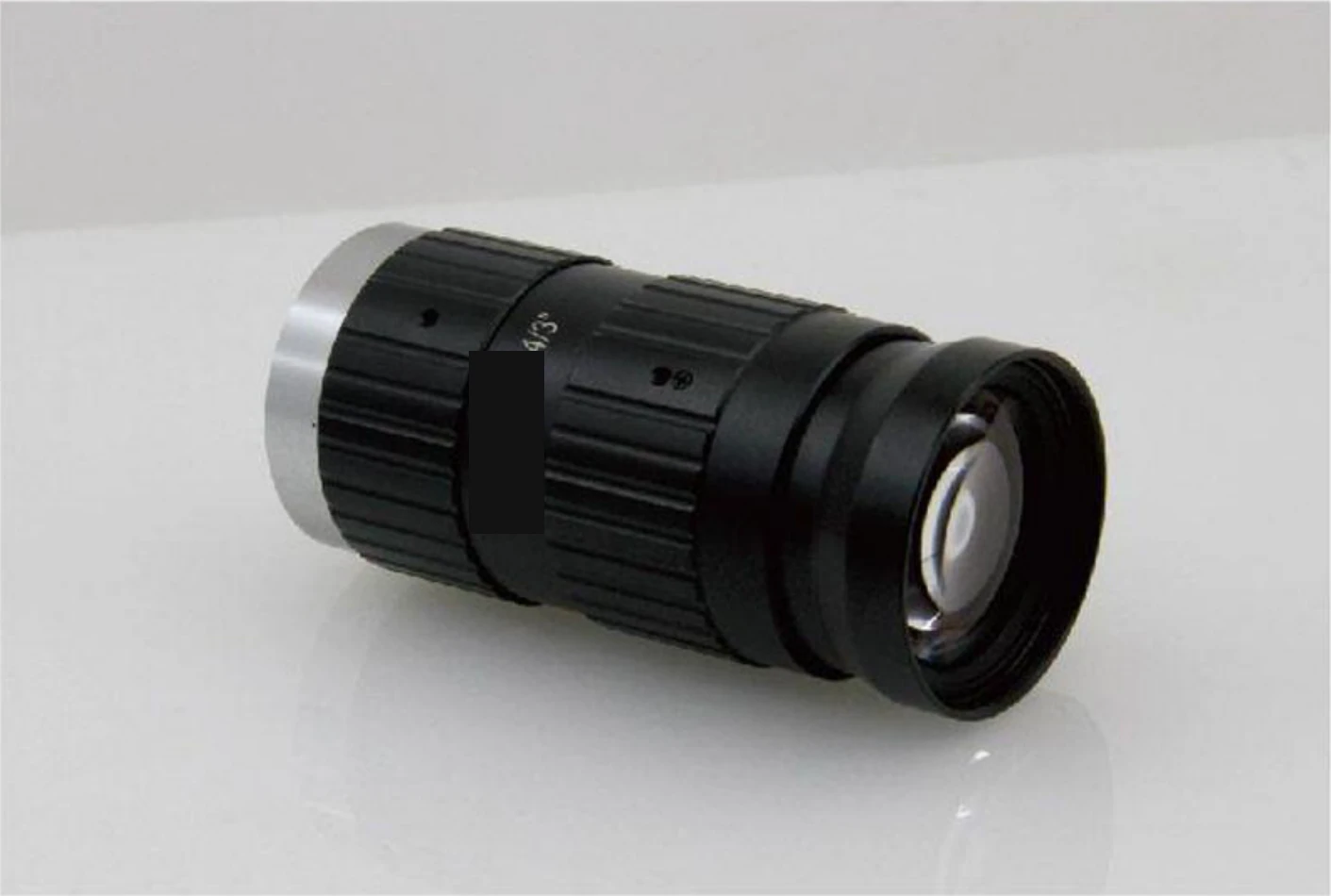

Fixed lens for FA, 4/3" 20MP, 16 mm, 4/3", C-Mount (LS-FA1620A)
Model LS-FA1620A
Industrial FA lenses supporting 4/3" sensors and compatible with 1.1" and 2/3" sensors, for 20MP area array cameras, with high relative illuminance, large aperture, compact structure and high contrast.
Features
- Support 4/3", and compatible with 1.1", 2/3" sensor
- Support 20 MP area array camera
- High relative illuminance, large aperture
- Excellent optical performance, compact structure design
- High contrast industrial FA lens
Specifications
| Model | LS-FA1620A |
|---|---|
| Focal length range | 12-50mm |
| F/NO | 2.8-22 |
| Mount | C-Mount |
| Distortion | <0.1% |
| Image size | 4/3" |
| Resolution | 20MP |
| EFL | 16mm |
| Image size (dia.) | 4/3" |
| Field of view angle 4/3" | 57.6° x 44.8° |
| Field of view angle 1" | 43.6° x 33.4° |
| Field of view angle 2/3" | 30.8° x 23.3° |
| Distortion (TV) 4/3" | <1% |
| MOD | 0.1m |
| Filter size | M35.5×P0.5 |
| Sensor format | 4/3" |
| Aperture | F2.8-22 |
| Shipping weight | 0.38 kg |
Applications
- Liquid crystal, semiconductor: count - SD card number calculation
- Electronic component: blemish / stain - LED appearance inspection
- Electronic equipment: yes or no / identify - detect poor binding and lead breakage of motor wires
- Electronic equipment: geometrical measurement - check whether the battery shrapnel terminal welding position is poor
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Fixed lens for FA, 4/3" 20MP series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-FA1220A | 12 mm, 4/3", C-Mount | $219.00 | 4 in stock | View |
| LS-FA2520A | 25 mm, 4/3", C-Mount | $229.00 | 2 in stock | View |
| LS-FA3520A | 35 mm, 4/3", C-Mount | $239.00 | 3 in stock | View |
| LS-FA5020A | 50 mm, 4/3", C-Mount | $259.00 | 4 in stock | View |
