Light controllers

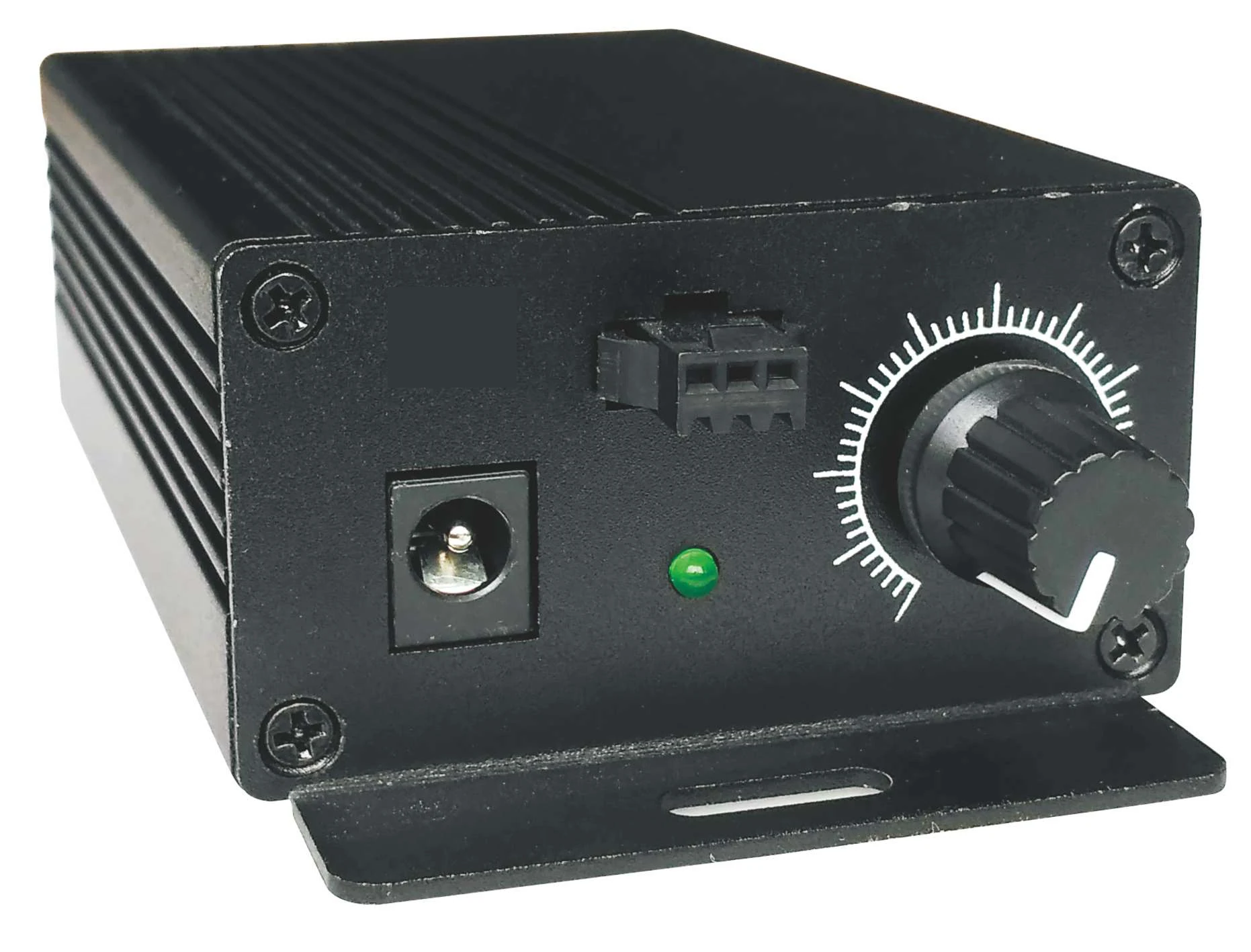

Common controller, single channel analog (DY30), 1 ch (LS-DY30-1-24V16-24V)
Model LS-DY30-1-24V16-24V
Common single channel analog controller with an aluminium alloy shell for good heat dissipation; DC output port, 3P port and adjustable knob.
Features
- Aluminium alloy shell with good heat dissipation
- DC port and 3P port
- Adjustable brightness knob
- 35w marked on the product photo
Specifications
| Model | LS-DY30-1-24V16-24V |
|---|---|
| Input voltage AC | 100-240 (printed '100-240c') |
| Output voltage DC | 16-24V |
| Maximum current | 1.2A |
| Channels | 1 |
| Control | Analog knob |
| Shipping weight | 0.50 kg |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
