Light controllers

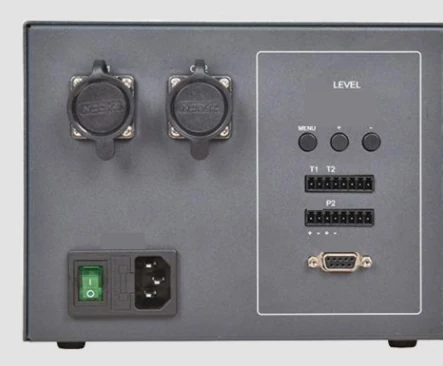

High power high-speed hybrid strobe controller, 2 ch, 700 W (LS-DV700-F03C-48200-2HK)
Model LS-DV700-F03C-48200-2HK
Controller section 'High power high-speed hybrid strobe controller' of the light controller selection manual (cards P63).
Features
- Supports RS232 communication
- Support external/internal triggering modes
- Low trigger response time
- Built in 48V switch power supply
- Support synchronous signal output
- 5~24V trigger, adaptable to high and low level trigger modes
- Easy installation, screw installation or C45 card rail installation
Specifications
| Model | LS-DV700-F03C-48200-2HK |
|---|---|
| Maximum output current per channel | Instantaneous 20A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 48V |
| Response speed | 500ns |
| Working mode | Internal trigger/external trigger |
| Overheat protection | HAVE |
| Communication baud rate | 9600-115200bps optional |
| Trigger method | Edge |
| Working environment temperature | 5~50°C |
| Connection light source type | 24/48V light source |
| Luminous mode | Strobe light |
| Number of channels (parameter table) | 2 channels |
| Strobe pulse width time | 10~999us |
| Internal trigger cycle value | 10~999ms |
| Dimension | 200x152x156mm |
| Built-in power supply power | 700W |
| Number of channels | 2 |
| Connected light source type | 24/48V light source |
| Catalog page | P63 |
| Output voltage | 48V |
| Built-in power supply | 700W |
| Max current per channel | 20A |
| Communication | RS232 |
| Trigger | 5~24V trigger |
| Feature 1 | Automatic saving of data on power failure |
| Manual page code | P63 |
| Total output (W) | 700 |
| Control | digital (buttons, 4-digit display) / RS232 |
| Shipping weight | 1.90 kg |
