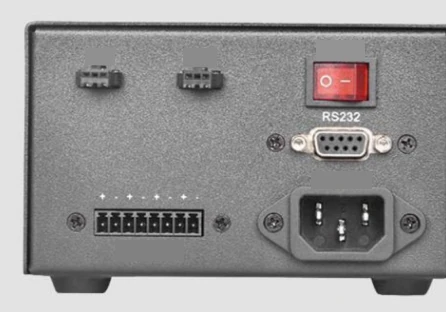

Representative photo of this series
Light controllers
Ordinary digital controller, 4 ch, 65 W (LS-DV65-N01C-24012-4)
Model LS-DV65-N01C-24012-4
Controller section 'Ordinary digital controller' of the light controller selection manual (cards P31-P36).
Features
- Support RS232 communication
- Low trigger response time
- Support external trigger mode
- Brightness and mode can be set manually
- Low trigger response time (≤10us)
Specifications
| Model | LS-DV65-N01C-24012-4 |
|---|---|
| Maximum input voltage | AC220V |
| Maximum output voltage | 24V |
| Overheat protection | NO |
| Working mode | 0: Normally extinguished; 1: Bright |
| Short circuit protection | NO |
| Brightness level | 255 levels |
| Communication baud rate | 9600-115200bps optional |
| Trigger mode | Level trigger |
| Operating temperature | 5~50°C |
| Driving mode | PWM |
| Dimension | 128x125x81mm |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Connected light source type | 10mA~2.5A 24V power supply |
| Maximum output current of single channel | 2.5A/4A |
| Built-in power supply | 65W/120W |
| Microsecond strobe time | 10us |
| Luminous mode | Normal light, normal extinction, strobe |
| Catalog page | P32 |
| Total output (W) | 65 |
| Control | digital (buttons, 4-digit display) / RS232 |
| Shipping weight | 0.65 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ordinary digital controller series
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-DV65-N01C-24012-2 | 2 ch, 65 W | 65 W | $219.00 | 4 in stock | View |
| LS-DV120-N01C-24012-4 | 4 ch, 120 W | 120 W | $309.00 | 3 in stock | View |
