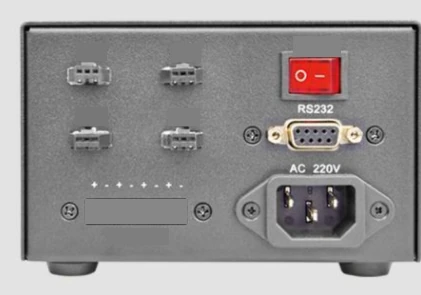

Representative photo of this series
Light controllers
Combination controller, 4 ch, 65 W (LS-DV65-N01C-24010-05005-4)
Model LS-DV65-N01C-24010-05005-4
Support RS232 communication. Support 5V light source and 24V regular light source control at the same time. Built-in 24V switching power supply.
Features
- Support RS232 communication
- Support 5V light source and 24V regular light source control at the same time
- Built-in 24V switching power supply
- Low trigger response time
- Support external trigger mode
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
Specifications
| Model | LS-DV65-N01C-24010-05005-4 |
|---|---|
| Maximum output current of single channel | 5V point light source interface maximum 0.5A; 24V interface max. 1A |
| Maximum input voltage | 220AC |
| Built-in power supply | 65W |
| Overheat protection | NO |
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Short circuit protection | NO |
| Brightness level | 255 levels |
| Trigger mode | Edge + level trigger |
| Operating temperature | 5~50°C |
| Communication baud rate | 9600-115200bps optional |
| Millisecond strobe time | 1~99ms |
| Microsecond strobe time | 10~990us |
| Connected light source type (parameter table) | 5V point light source; 24V 10mA~1A light source |
| Driving mode | Constant voltage/current |
| Dimension | 128×125×81mm |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Connected light source type | 5V point light source 12V 10mA~1A light source |
| Catalog page | P39 |
| Total output (W) | 65 |
| Control | digital (buttons, 4-digit display) / RS232 |
| Shipping weight | 0.65 kg |
