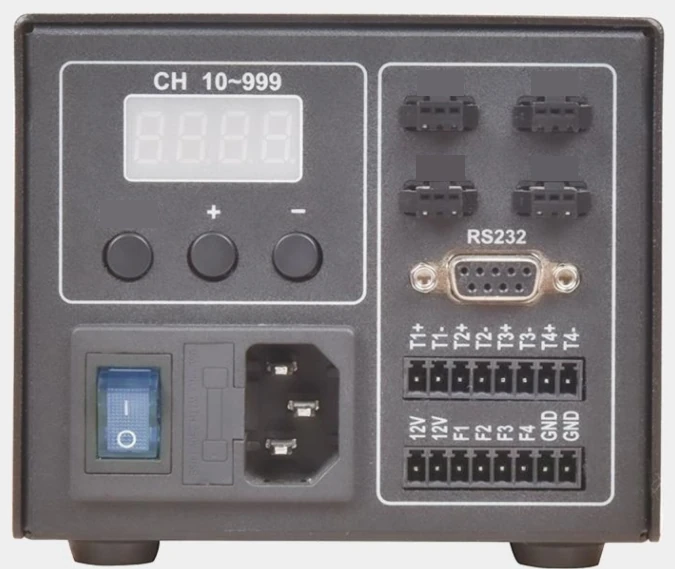

Representative photo of this series
Light controllers
High speed hybrid strobe controller, 4 channels, 4 ch, 120 W (LS-DV120-F03C-48200-4F)
Model LS-DV120-F03C-48200-4F
Supports RS232 communication. Support external/internal triggering modes. Low trigger response time.
Features
- Supports RS232 communication
- Support external/internal triggering modes
- Low trigger response time
- Built in 48V switch power supply
- Support synchronous signal output
- 5~24V trigger, adaptable to high and low level trigger modes
- Easy installation, screw installation or C45 card rail installation
Specifications
| Model | LS-DV120-F03C-48200-4F |
|---|---|
| Maximum output current per channel | Instantaneous 20A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 24/48V |
| Response speed | 500ns |
| Working mode | Internal trigger/external trigger |
| Overvoltage protection | NO |
| Communication baud rate | 9600-115200bps optional |
| Trigger method | Edge |
| Working environment temperature | 5~50°C |
| Connection light source type | 24V light source |
| Luminous mode | Strobe light |
| Number of channels (parameter table) | 4 channels |
| Strobe pulse width time | 10~999us |
| Internal trigger cycle value | 10~999ms |
| Dimension | 121x118x90mm |
| Built-in power supply power | 120W |
| Number of channels | 4 |
| Connected light source type | 24V light source |
| Catalog page | P62 |
| Total output (W) | 120 |
| Control | digital (buttons, 4-digit display) / RS232 |
| Shipping weight | 0.65 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the High speed hybrid strobe controller, 4 channels (DV-F03C-4F) series
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-DV120-F03C-24200-4F | 4 ch, 120 W | 120 W | $169.00 | 3 in stock | View |
