Dome lights

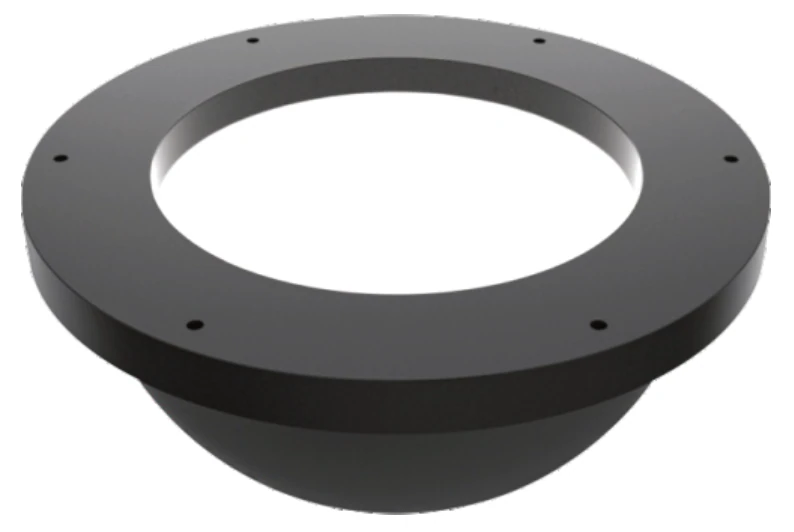

500 mm Dome light source (DS) (LS-DS500-R/G/B/W)
Model LS-DS500-R/G/B/W
Diffuse light comes from a dome-shaped reflector, giving diffuse-reflection shadowless lighting suitable for undulating surfaces and reflective objects.
Features
- Diffuse light comes from dome shaped reflector
- Diffuse reflection shadowless light source
- Suitable for undulating surfaces and reflective objects
Specifications
| Model | LS-DS500-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series, LS-HAPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Illuminance chart reference | LS-DS116-W; uniformity LS-DS175-W, FOV 80 x 80 mm at LWD 20/40/60 mm |
| Power R (W) | 242 |
| Power G/B/W (W) | 242 |
| Luminous size (mm) | 500 |
| Overall OD (mm) | 700 |
| Camera hole ID (mm) | 65 |
| Overall H (mm) | 313.32 |
| Recommended controller | LS-HAPS (dia. 19) |
| Shipping weight | 62.55 kg |
Applications
- Curved surface defect inspection
- Surface defect inspection
- Inspection of concave and convex surface defects
- Inspection of arc surface defects
- Metal, glass and other reflective objects surface inspection
- Character recognition of electrical appliance appearance
- Hardware parts edge extraction
- Line colour differentiation
- Wheel hub appearance inspection
