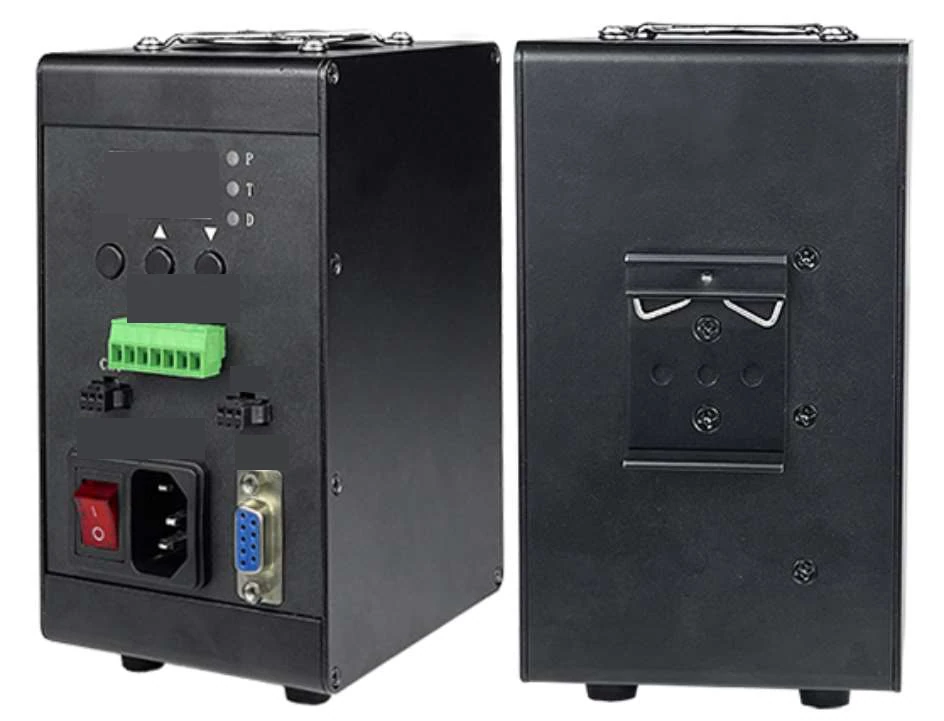

Two channel stroboscopic brightening digital controller (DPS), 2 ch (LS-DPSH-2C040W40W-48PS)
Model LS-DPSH-2C040W40W-48PS
Two channel stroboscopic brightening digital controller: with a conventional 24V light source it can instantly raise the brightness more than 3 times; high speed optocoupler, internal and external trigger, strobe time 0-999us, and automatic trigger output to the camera.
Features
- Small volume
- Exquisite appearance
- High speed optocoupler, short response time
- Supports internal and external trigger modes
- Stroboscopic time can be set to 0-999us
- Combined with the conventional 24V light source, it can instantly improve the brightness of the light source more than 3 times
- Automatically outputs the trigger signal of the camera and synchronously triggers the camera to capture images
Specifications
| Model | LS-DPSH-2C040W40W-48PS |
|---|---|
| Control mode | PWM (pulse driven type) |
| Input voltage | AC 110-220V |
| Output voltage | DC 48V (moment) |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (through the upper computer software) |
| Luminance level memory | yes (remembered 3 seconds after adjustment) |
| RS232 communication baud rate | 9600 |
| Adjustable brightness level | 0-999 level |
| Max. power output/channel | 40W (the power of the single-pass connected light source is <=40W) |
| External trigger mode | High level trigger (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <10us |
| External trigger frequency | <1/5T (determined by the external trigger signal, but affected by the stroboscopic pulse width) |
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Stand-by power consumption | <1W |
| Boundary dimension (mm) | 123x85x158mm (LxWxH) |
| Channel | 2 |
| Power/CH | 40W |
| External trigger | yes |
| Channels | 2 |
| Shipping weight | 0.80 kg |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
