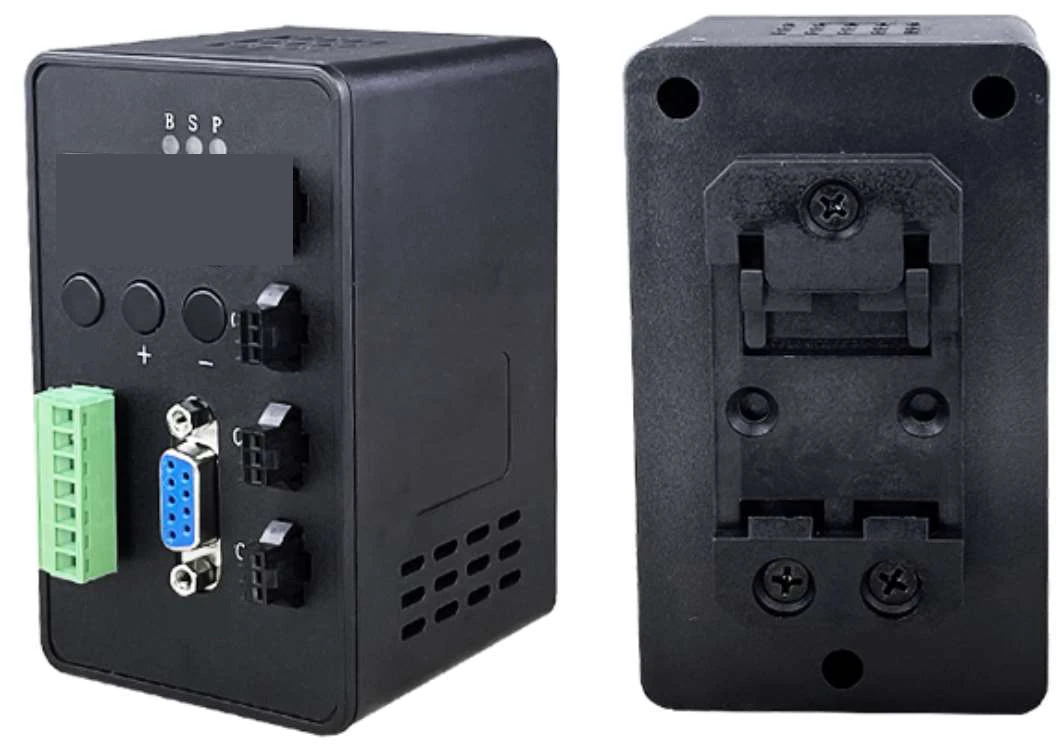

Third generation four channel mini digital controller (DPM3), 4 ch, 72 W (LS-DPM3-4C072W72W-24PS)
Model LS-DPM3-4C072W72W-24PS
Third generation 4-channel mini digital PWM controller: small volume, automatic power adaptation, two trigger modes, adjustable stroboscopic pulse width, short circuit and overcurrent protection, brightness levels 0-999.
Features
- Small volume
- Exquisite appearance
- Automatic power adaptation
- Two trigger modes
- Stroboscopic pulse width is adjustable
- Short circuit and overcurrent protection
- Brightness levels 0-999 are adjustable
Specifications
| Model | LS-DPM3-4C072W72W-24PS |
|---|---|
| Control mode | PWM driven type (choosable) |
| Input voltage | DC24V |
| Channel | 4 Channel |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (through the upper computer software) |
| Luminance level memory | yes (memory automatically remembered 3 seconds after adjustment) |
| RS232 communication baud rate | 9600 |
| Adjustable brightness level | 0-999 level |
| Max. power output/channel | 72W |
| Total output power of the controller | 72W |
| External trigger mode | High level trigger (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <10us |
| External trigger frequency | <1/T (e.g. T=1ms gives at most 1KHz) |
| Short-circuit protection | yes: when the circuit is short, the corresponding channel output is automatically closed |
| Overcurrent protection | yes: beyond 72W all channels are automatically closed and Errl is displayed; restart and restore after the exception condition is removed |
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Stand-by power consumption | <3W |
| Boundary dimension (mm) | 81*60*100mm (LxWxH) |
| Power/CH | 72W |
| Output voltage | 24V |
| External trigger | yes |
| Total power | 72W |
| Channels | 4 |
| Shipping weight | 0.35 kg |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
