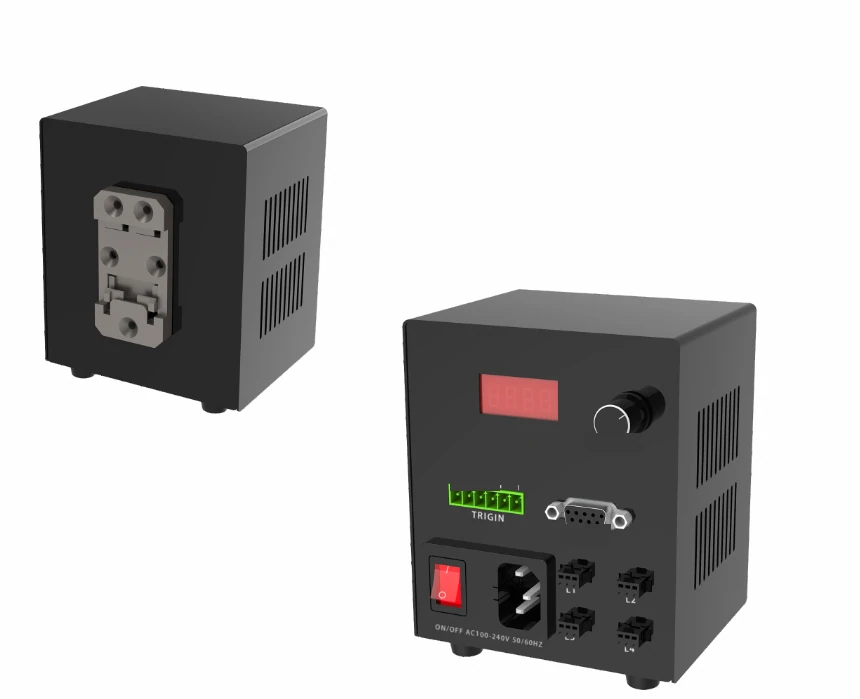

DPCS digital controller, 4 ch, 60 W (LS-DPCS-6024-4-232)
Model LS-DPCS-6024-4-232
Suitable for 24V light within 48w.
Features
- Combines with continuous mode, ON/OFF lighting, and strobe mode.
- Digital display for easy confirmation of set values.
- External trigger with selectable high/low level, providing flexible use.
- External trigger signal can control the lighting ON/OFF state or strobing time.
- Trigger response time< 50 us.
- Adopts high-speed optocoupler design, ensuring high speed and reliability.
Specifications
| Model | LS-DPCS-6024-4-232 |
|---|---|
| Lighting mode | Continuous mode/ set a light on time |
| Drive mode | Constant voltage |
| Dimming method | PWM Control and Lighting Duration Control |
| Number of channels | 4CH |
| PWM frequency | 125KHz |
| Overcurrent protection | if total output power > 65W, Power cycle to restore. |
| Rated input voltage | AC 100V~240V |
| Trigger input voltage | 5~24V |
| Total rated output power | 4CH, total 60w |
| Standard accessories | AC cable |
| Optional accessories | RS-232 Communication Cable (3 meters) |
| Total output (W) | 60 |
| Control | digital display / RS232 |
| Shipping weight | 0.50 kg |
Applications
- Used for 24v light.
