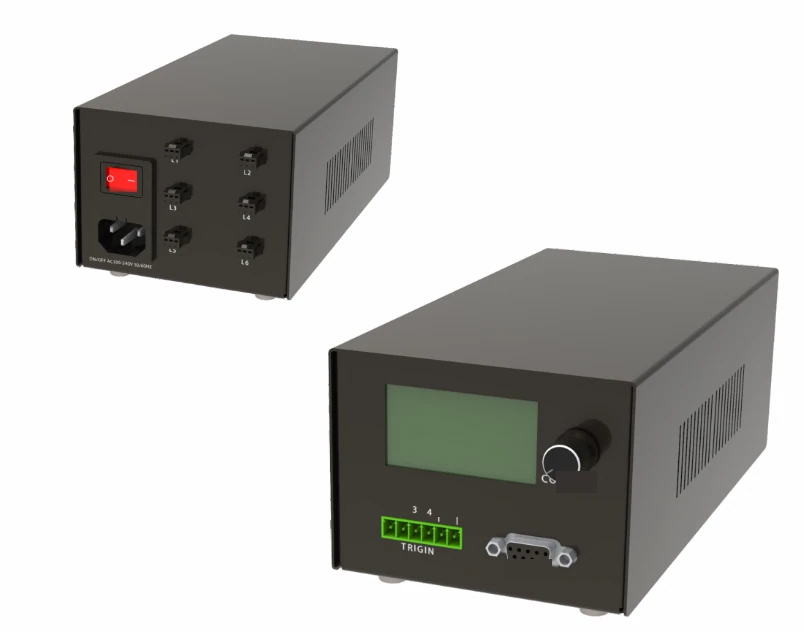

DPCM combined digital controller, 4 ch, 60 W (LS-DPCM-60245-4-232/485)
Model LS-DPCM-60245-4-232/485
The DPCM controller combines constant current output (5V) and PWM output (24V), offering the functions of both a digital controller and a constant current controller. Can be used in various environments.
Features
- Large Screen Display Design, easy operation.
- 1024 Level Brightness Adjustment.
- Combined Use of 5V and 24V Outputs.
- Built-in Soft Trigger, light on/off through external communication.
- High-speed optocoupler extends light life via strobing.
- With serial ports (RS232/RS485/RJ45 Optional), can be remotely operated.
- DIN rail or bottom mount options.
Specifications
| Model | LS-DPCM-60245-4-232/485 |
|---|---|
| Lighting mode | Continuous mode/ strobe mode |
| Drive mode | Constant Voltage/Constant Current |
| Dimming method | PWM Control and Lighting Duration Control |
| Number of channels | 4 Channels (L1 &L2 is Constant Voltage, L3&L4 is Constant Current) |
| PWM frequency | 62.5KHz, 125KHz optional |
| Status | OK(work), OCP(Overload/Short-circuit protection) |
| Overcurrent protection | total output power exceeds 60W, turning the power back on will restore it. |
| Rated input voltage | AC 100V~240V |
| Trigger input voltage | 3~24V |
| Rated output power | Total 60W for 4 Channels, 48W for L1/L2, 3W for L3/L4 |
| Standard accessories | AC Cable |
| Optional accessories | RS-232 Communication Cable (3 meters) |
| Total output (W) | 60 |
| Control | digital display / RS232 / EIA485 |
| Shipping weight | 0.50 kg |
Applications
- Used for 5v/24v lights.
