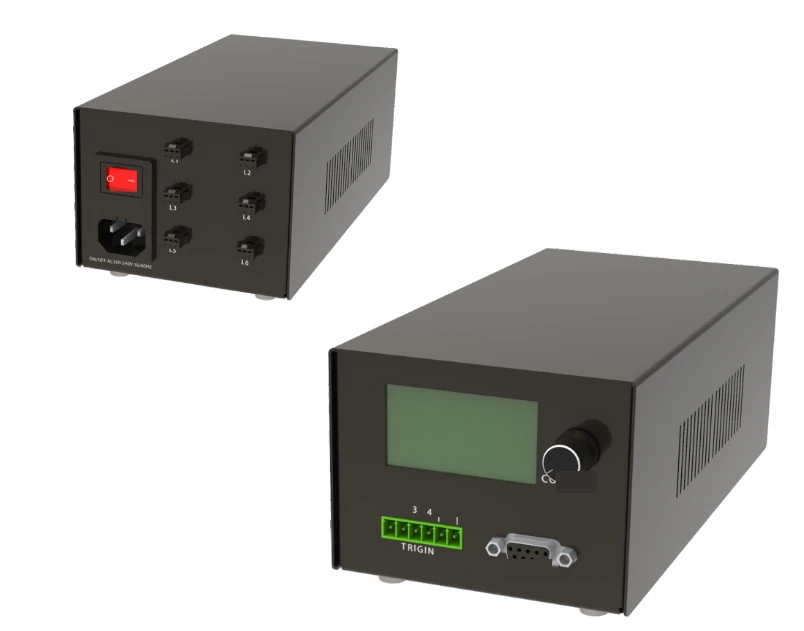

DPCL multi-function digital controller, 4 ch, 60 W (LS-DPCL-6024-4)
Model LS-DPCL-6024-4
DPCL digital multi-function controller for standard 24V light. High-frequency PWM output, 1024-level brightness adjustment, storage for 16 sets of brightness data, multiple trigger modes (CM, SM, FM), external high-speed strobe triggering, with serial port.
Features
- Large Screen Display Design, easy operation.
- 1024 Level Brightness Adjustment.
- 16 sets of brightness data, manually/communication control.
- Built-in Soft Trigger, light on/off through external communication.
- Multiple triggering modes, including CM (Cyclic Mode), SM (Synchronous Mode), and FM (Cyclic Mode 2).
- High-speed optocoupler extends light life via strobing.
- With serial ports (RS232/RS485/RJ45 Optional), can be remotely operated
- DIN rail or bottom mount options.
Specifications
| Model | LS-DPCL-6024-4 |
|---|---|
| Input voltage | AC 100-240V |
| Output voltage | 24V |
| Single channel output power | 48W |
| Adjustment method | PWM control 0-1023 level |
| PWM frequency | Selectable high and low operating frequencies |
| Trigger output voltage | DC5-24V |
| Trigger delay | 8us |
| Overload protection | 110% (Restore after power-off and restart) |
| Communication interface | RS232/EIA485 |
| ID setting | TD: 0-99 (When using EIA-485, one PC can control multiple controllers, up to 100. |
| Light on/ light off | Configurable by trigger timing or RS232/EIA-485 |
| Number of channels | 4 channel |
| Operating environment | Temperature: 0-40°C, Humidity: 20-85% |
| Trigger modes | CM (Cyclic Mode), SM (Synchronous Mode), FM (Cyclic Mode 2) |
| Total output power | 60W |
| Control | digital display / RS232 / EIA485, 16 stored brightness sets |
| Shipping weight | 0.50 kg |
Applications
- Used for 24v light.
