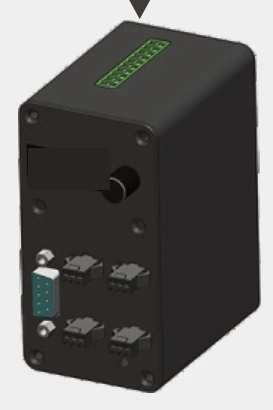

Digital controller box, 4 ch, 80 W (LS-DPC2480)
Model LS-DPC2480
Digital controller box with constant-on and strobe modes, 0-255 ms strobe lighting time, 10 us short delay time and 256-level luminance adjustment.
Features
- High cost-effective
- Constant on and strobe mode optional
- 0-255ms strobe lighting time can be set
- 10us short delay time, 256-level luminance adjustable
Specifications
| Model | LS-DPC2480 |
|---|---|
| Product | Digital control box |
| Output voltage | 24V |
| Total output power | 80W |
| One way max. output power | 80W |
| Number of channels | 4 |
| Dimension (table column) | 1 |
| External trigger voltage | 5-24V |
| Baud rate | 9600 bps |
| Input voltage | DC 24V |
| Total output current | 3.34A |
| Luminance adjustment method | Manual adjust by knob, PC remote adjusting |
| Luminance adjustment mode | PWM adjust |
| Working mode | Constant on/Trigger/Strobe |
| Trigger delay time | ≤10us |
| Luminance adjustment level | 256 level |
| Memory function | Data saving automatically when power off. |
| Overcurrent protection status | Digital tube displays Er03 while overcurrent, which can be removed by restarting the controller or sending reset instructions. |
| Communication mode | RS232 |
| Constant on / off switch | Adjust the state of H mode through the encoder knob, H1 is the constant on mode, H0 is the constant off mode. |
| Exit and enter strobe mode | Press the knob to change the P mode state. P1 exits the strobe mode, P0 enters the strobe mode. |
| Operating environment | Humidity 20%-85%RH (frost free state), temperature 0℃-50℃ |
| Storage environment | Humidity 20%-85%RH (frost free state), temperature 0℃-60℃ |
| Trigger timing | T1 (turn-on delay) ≤10us, T3 (turn-off delay) ≤10us; NPN or PNP trigger wiring |
| Mounting | DIN rail mounting base |
| Dimensions W x H x D (mm) | 50 x 95 x 92.5 |
| Control | encoder knob / RS232 |
| Shipping weight | 0.35 kg |
