Light controllers

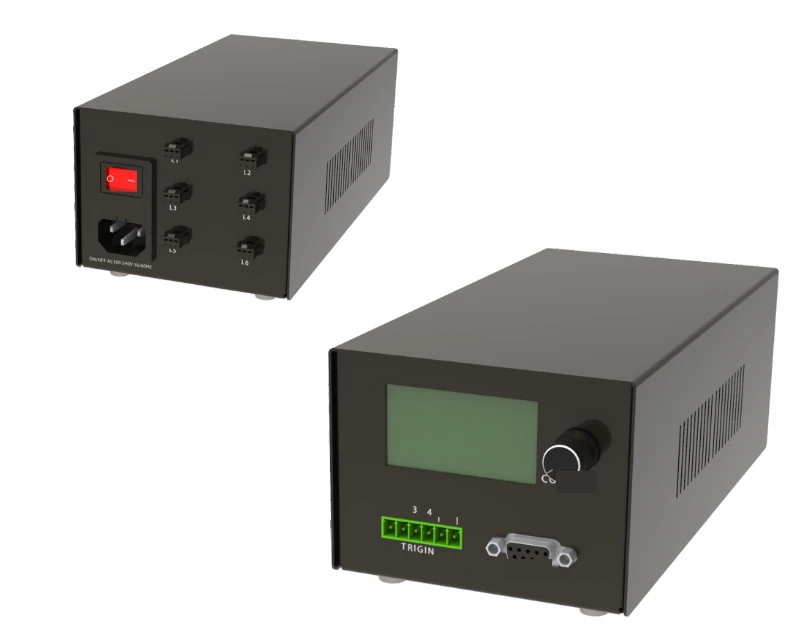

DPC digital controller, 4 ch, 60 W (LS-DPC-6024-4)
Model LS-DPC-6024-4
DPC digital controller for standard 24V light, adjustable high-frequency PWM output, 256-level brightness adjustment, 0-999ms delay for light on/off, external high-speed strobe triggering, with serial port.
Features
- Large screen for easy reading and simple operation.
- 256-level brightness adjustment.
- Soft trigger for remote channel control.
- High-speed optocoupler extends light life via strobing.
- Delay setting: Lighting/extinguishing delay time 1 to 999 ms
- Remote control via serial/Ethernet/RS485/RJ45.
- DIN rail or bottom mount options.
Specifications
| Model | LS-DPC-6024-4 |
|---|---|
| Output voltage | 24V |
| Single channel output power | 48W |
| Adjustment method | PWM, 0-255 level |
| PWM frequency | Selectable high and low operating frequencies |
| Trigger output voltage | DC5-24V |
| Trigger delay | 8us |
| Overload protection | 100% (displayed at the bottom of the screen. Power off to restore) |
| Communication port | RS232/EIA485 optional |
| ID setting | TD: 0-99 (When using EIA-485, one PC can control multiple controllers, up to 100 controllers) |
| Light on/ light off | Configurable by trigger timing or RS232/EIA-485 |
| Operating environment | Temperature: 0-40°C, Humidity: 20-85% |
| Input voltage | AC 100-240V / 24V DC (two columns printed with the same model number) |
| Total output power | 60W |
| Channels | 4 ch |
| Control | digital display / RS232 / EIA485 |
| Shipping weight | 0.50 kg |
Applications
- Used for 24V light.
