Rendered illustration: the actual product may differ in appearance.
Dome lights

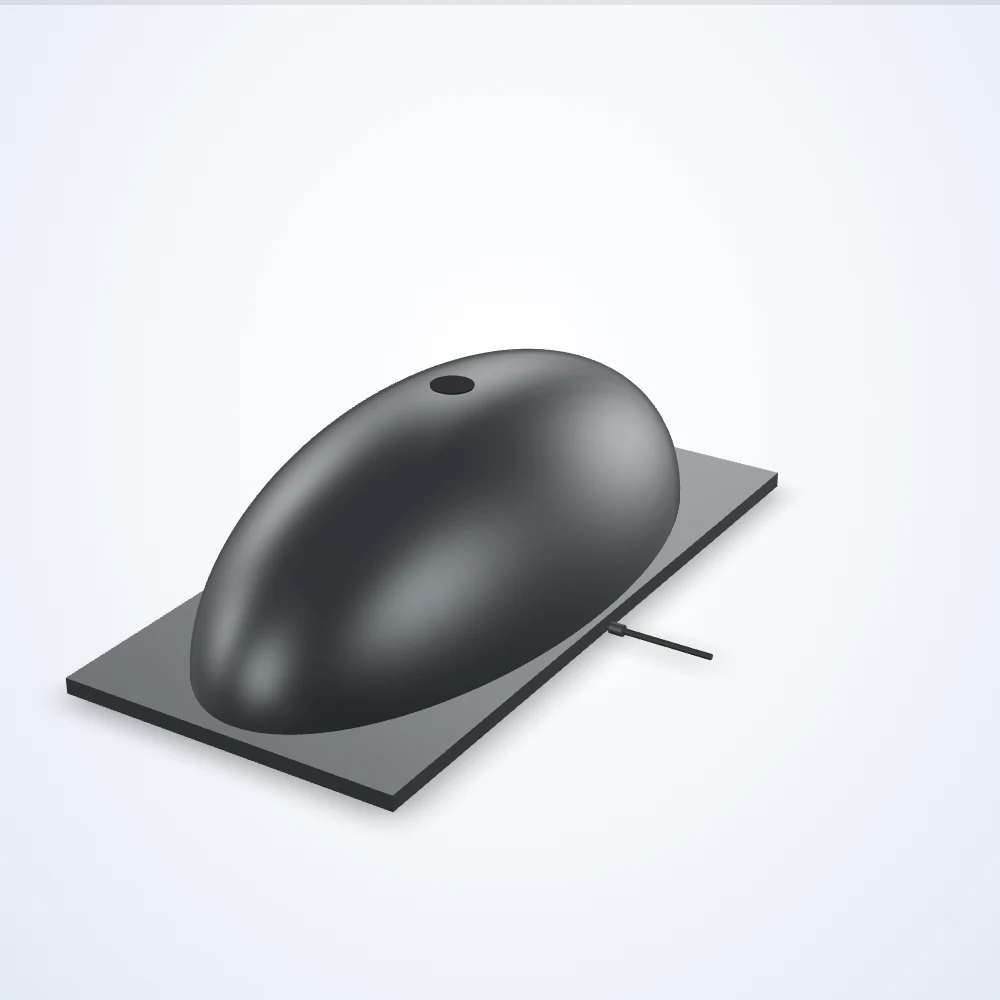

629.92 x 306.8 mm dome light (LS-DOM-0001-L4)
Model LS-DOM-0001-L4
629.92 x 306.8 mm dome light. Lit area 609.6 x 237.2 mm. Connection: Flying Leads. Available in 88 configurations (color, driver included, driver location, driver nomenclature); choose one below and request a quote.
Specifications
| Model | LS-DOM-0001-L4 |
|---|---|
| Active Length (mm) | 609.6 |
| Active Width (mm) | 237.2 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Height (mm) | 180.8 |
| Housing Material | Aluminum |
| IP Rating | IP67 |
| Length (mm) | 629.92 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| Polarized | Not Polarized |
| Product Weight (Kg) | 3.97 |
| Product Weight (Lbs) | 8.75 |
| Voltage | 24 VDC |
| Width (mm) | 306.8 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 629.92 x 306.8 mm dome light series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-DOM-0001-L1 | Price on request | 309 in stock | View | |
| LS-DOM-0001-L2 | Price on request | 459 in stock | View | |
| LS-DOM-0001-L3 | Price on request | 304 in stock | View | |
| LS-DOM-0001-L5 | Price on request | 296 in stock | View | |
| LS-DOM-0001-L6 | Price on request | 143 in stock | View |
