Third generation four channel standard digital controller (DCS3)
Light controllers

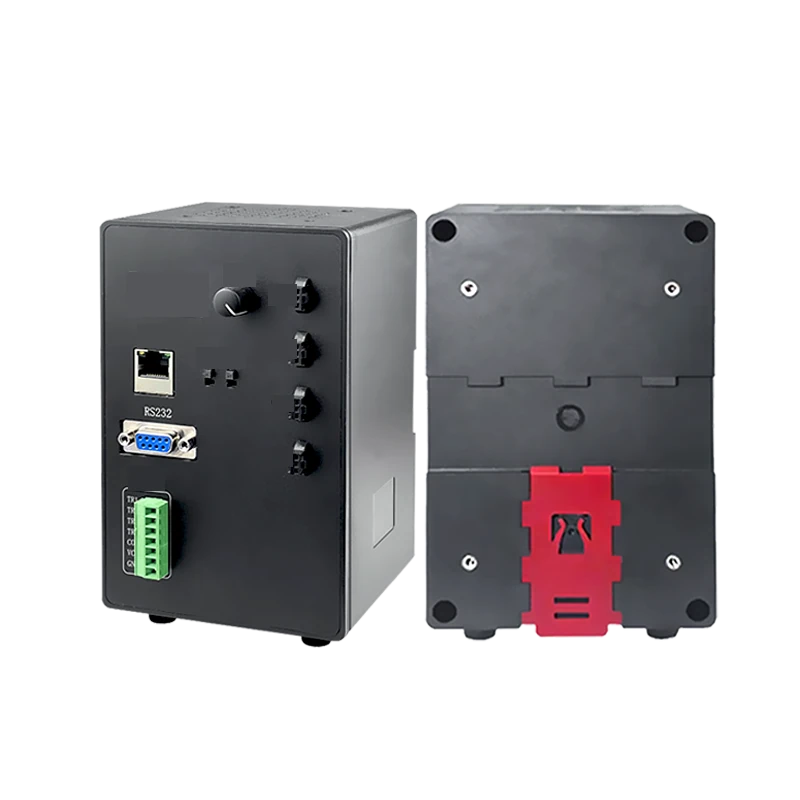

Third generation four channel standard digital controller (DCS3), 4 ch, 120 W (LS-DCS3-4C080W120W-24PS-E)
Model LS-DCS3-4C080W120W-24PS-E
Third generation 4-channel standard digital constant-current controller: multiple trigger modes, abnormal light source protection, automatic adaptation of light source power, per-channel power setting and strobe time 1-999.
Features
- Small volume
- Exquisite appearance
- Multiple trigger modes (high level, low level, rising edge, falling edge)
- Abnormal light source protection
- Automatic adaptation of light source power
- The channel power can be set
- Strobe time 1-999 can be set
- Multiple trigger modes.
- Abnormal light source protection.
- Automatic adaptation of light source power.
- Automatic memory function, no data loss during power outage.
- Very stable output and no flicker.
Specifications
| Model | LS-DCS3-4C080W120W-24PS-E |
|---|---|
| Control mode | Constant current driven type |
| Input voltage | AC100-240V |
| Channel | 4 Channel |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (communication through RS232 serial port) |
| Luminance level memory | yes (automatic memory in 3 seconds after adjustment) |
| RS232 communication baud rate | 9600 |
| Adjustable brightness level | 0-255 level (adjust manually by encoder or by PC software) |
| Max. power output/channel | 2.5A |
| External trigger mode | Passive triggering (effective trigger voltage range 5-24V DC) |
| Four trigger modes | High level trigger, low level trigger, upper open (rising) edge trigger, falling edge trigger; on edge triggering the luminescence duration can be set in the upper computer software from 1-999ms |
| External trigger delay time | H, ON→OFF <80us |
| External trigger frequency | <1/T (e.g. T=1ms gives at most 1KHz) |
| Short-circuit protection | yes: the corresponding channel output is automatically closed |
| Overcurrent protection | yes: beyond 2.8A all channels are automatically closed and X.Errl (X = channel) is displayed; restart and restore after the exception condition is removed |
| Automatic detection of light source power | yes (select manually or by command) |
| Output power of each channel can be adjusted | yes (by power level, ranging from 1 to 25) |
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Stand-by power consumption | <5W |
| Boundary dimension (mm) | 115.8*100*163mm (LxWxH) |
| Type | Digital Standard |
| Current | DC |
| Input Volt | AC240V |
| Output Volt | 24V |
| Output Power Per Channel | 80W |
| Output Power Total Power | 120W |
| Trigger | Yes |
| Remarks | With power supply |
| Type (product page) | Digital Standard Controller |
| Input Volt (product page) | 100-200VAC |
| Total output power | 120W |
| Trigger (product page) | Passive triggering |
| Operating temperature | 10~50 ℃ |
| Operating humidity | 20~80% |
| Storage temperature | 20~70℃ |
| Storage humidity | 10~90% |
| Dimensions | 115.8×100×163mm |
| Channels | 4 |
| Shipping weight | 0.90 kg |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
