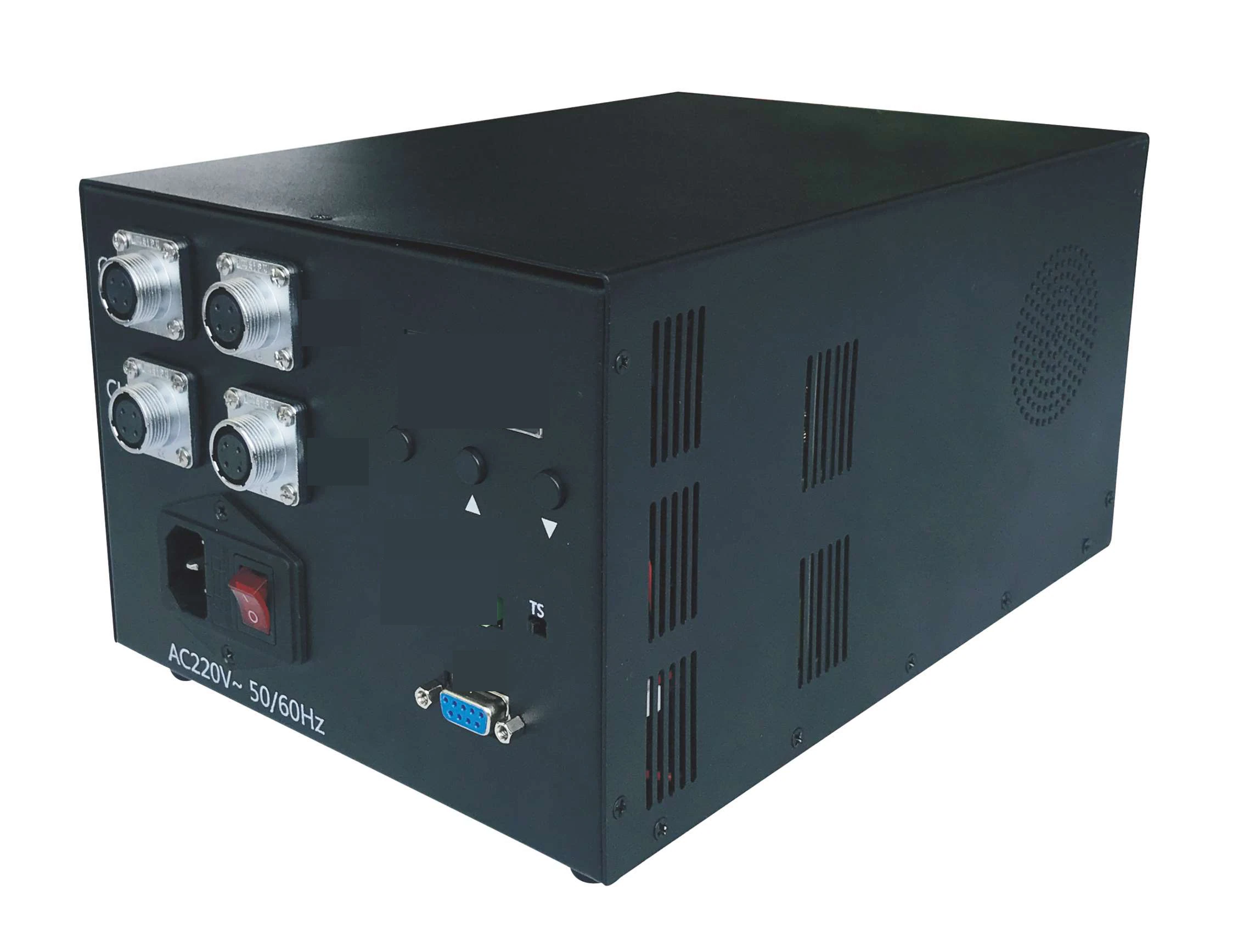

Standard digital controller (DCS series, incl. high power), 2 ch, 600 W (LS-DCS-2C300W-24PS)
Model LS-DCS-2C300W-24PS
Standard digital constant-current light controller (ordinary type), 1, 2 or 4 channels up to 600 W per channel; current control makes LED brightness more stable so the camera takes pictures without stroboscopic phenomenon. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.
Features
- Current control: LED brightness is more stable, the camera takes pictures without stroboscopic phenomenon
- High and low level trigger switching
- Brightness 255 level adjustable
- RS232 serial port control
Specifications
| Model | LS-DCS-2C300W-24PS |
|---|---|
| Type of drive | Constant current |
| Input voltage | 100-220V AC |
| Output voltage range | DC14.0V~24.0V |
| External trigger mode | Passive trigger, high and low level trigger can be switched (effective trigger voltage range 5-24V DC; 6-24V DC on the 4-channel high power page) |
| External trigger delay time | H, ON→OFF <60us; H, OFF→ON <60us; L, ON→OFF <80us; L, OFF→ON <80us |
| External trigger frequency | <1/T (e.g. T=1ms gives at most 1KHz) |
| Work environment | Temperature: -10~50 °C, Humidity: 20~80%RH non-solidification |
| Storage environment | Temperature: -20~70 °C, Humidity: 10~55%RH non-solidification |
| Stand-by power consumption | <1W |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (through the upper computer software) |
| Luminance level memory | yes (memory automatically remembered 8 seconds after adjustment) |
| RS232 communication baud rate | 9600 |
| Adjustable brightness level | Level 255 (long press rough adjustment, short press fine adjustment; also adjustable by PC software) |
| Channel | 2 |
| Power/CH | 300W |
| Output voltage | 24V |
| External trigger | yes |
| Total power | 600W |
| Boundary dimension (mm) | 356x150x144.5mm (LxWxH) |
| Weight | 5.2Kg |
| Channels | 2 |
| Total output (W) | 600 |
| Control | Digital: keys / RS232 |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
