Light controllers

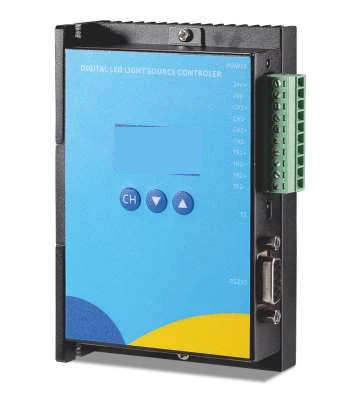

Mini digital controller (DCM series), 2 ch, 200 W (LS-DCM-2C100W-24S)
Model LS-DCM-2C100W-24S
Mini digital constant-current light controller with DC24V input, 1 or 2 channels, up to 150 W per channel, 24 V output, external trigger. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.
Features
- Compact mini housing
- Digital display and keys
- External trigger
Specifications
| Model | LS-DCM-2C100W-24S |
|---|---|
| Type of drive | Constant current |
| Input voltage | DC24V |
| Output voltage | 24V |
| Channel | 2 |
| Power/CH | 100W |
| External trigger | yes |
| Total power | 200W |
| Channels | 2 |
| Total output (W) | 200 |
| Control | Digital |
| Shipping weight | 0.50 kg |
Applications
- Powering machine vision LED light sources, brightness control and strobe (trigger) control
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Mini digital controller (DCM series) series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-DCM-1C100W-24S | 1 ch | $119.00 | 3 in stock | View | |
| LS-DCM-2C050W-24S | 2 ch | $149.00 | 3 in stock | View | |
| LS-DCM-1C150W-24S | 1 ch, 150 W | 150 W | $159.00 | 2 in stock | View |
