Light controllers

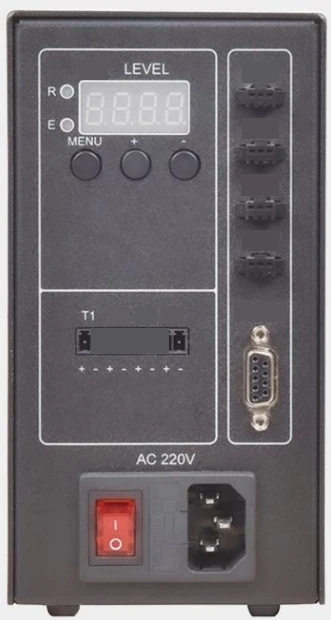

Digital point light controller, 4 channels, 4 ch, 65 W (LS-DC65-P03C-05020-4)
Model LS-DC65-P03C-05020-4
Support RS232 communication. Support 100Gb Ethernet communication. Built-in 5V switching power supply.
Features
- Support RS232 communication
- Support 100Gb Ethernet communication
- Built-in 5V switching power supply
- Low trigger response time
- Support external trigger mode
- Normal light / strobe can be switched
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Easy to install, screw mounting or C45 rail mounting
Specifications
| Model | LS-DC65-P03C-05020-4 |
|---|---|
| Single channel instantaneous maximum current | 2A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 5V |
| Overheat protection | NO |
| Working mode | NOR: constant light (printed in pinyin 'Hengliang'); TRIG: 0: Constant off 1.1-999 milliseconds flicker (as printed) |
| Short circuit protection | NO |
| Brightness level | 255 levels |
| Connection light source type | 5V point light source |
| Millisecond strobe time | 1~999ms |
| Communication | 9600-115200bps optional |
| Trigger mode | Edge + level trigger |
| Operating temperature | 5~50°C |
| Luminous mode | Normal light, normal extinction, constant Brightness, strobe |
| Number of channels | 4 |
| Dimension | 89×147×175mm |
| Built-in power supply power | 65W |
| Connected light source type | 5V point light source |
| Catalog page | P48 |
| Total output (W) | 65 |
| Control | digital (buttons, 4-digit display) / RS232 (features also list 100Gb Ethernet) |
| Shipping weight | 1.05 kg |
