Digital point light controller, Ethernet, 2/4/8/16 channels (DC-P01CE)
Representative photo of this series
Light controllers

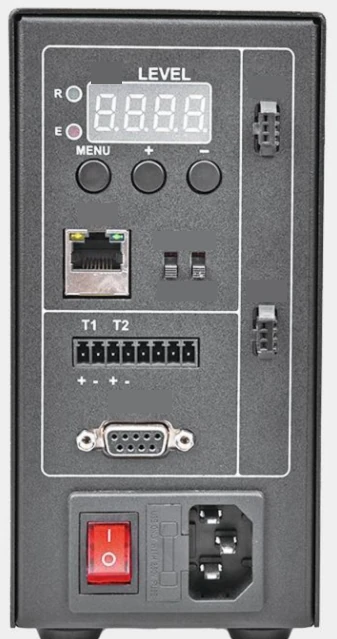

Digital point light controller, Ethernet, 2/4/8/16 channels, 4 ch, 65 W (LS-DC65-P01CE-05008-4)
Model LS-DC65-P01CE-05008-4
Support RS232 communication. Support 100Gb Ethernet communication. Built-in 5V switching power supply.
Features
- Support RS232 communication
- Support 100Gb Ethernet communication
- Built-in 5V switching power supply
- Low trigger response time
- Support external trigger mode
- Normal light / strobe can be switched
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Easy to install, screw mounting or C45 rail mounting
Specifications
| Model | LS-DC65-P01CE-05008-4 |
|---|---|
| Single channel instantaneous maximum current | 0.8A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 5V |
| Overheat protection | NO |
| Working mode | NORMAL: 0: Normally extinguished, 1: Bright, 2: Millisecond strobe; STROBE: 0: 1~999ms strobe, 1: 10~999 microseconds strobe |
| Short circuit protection | NO |
| Brightness level | 255 levels |
| Connection light source type | 5V point light source |
| Millisecond strobe time | 1~999ms |
| Trigger mode | Edge + level trigger |
| Operating temperature | 5~50°C |
| Luminous mode | Normal light, normal extinction, constant Brightness, strobe |
| Driving mode | Constant Current |
| Communication | RS232; 100Gb Ethernet |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Connected light source type | 5V point light source |
| Dimension | 79×127×165mm |
| Catalog page | P45 |
| Total output (W) | 65 |
| Control | digital (buttons, 4-digit display) / RS232 / Ethernet |
| Shipping weight | 0.80 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Digital point light controller, Ethernet, 2/4/8/16 channels (DC-P01CE) series
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-DC65-P01CE-05008-8 | 8 ch, 65 W | 65 W | $279.00 | 4 in stock | View |
| LS-DC65-P01CE-05008-16 | 16 ch, 65 W | 65 W | $449.00 | 3 in stock | View |
