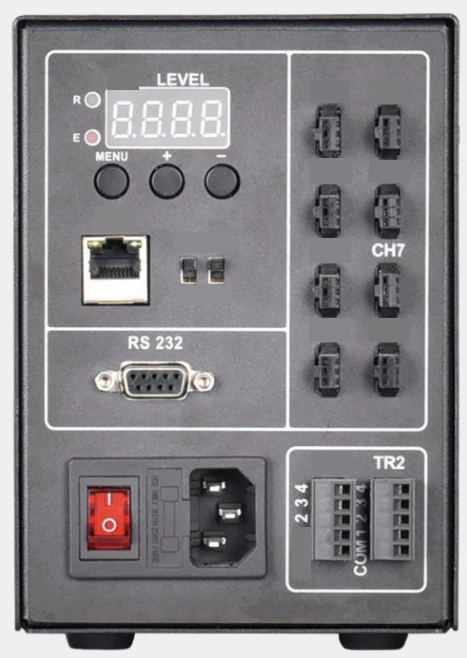

Representative photo of this series
Light controllers
Constant current hybrid controller, 8 ch, 120 W (LS-DC120-I20CE-24020-8)
Model LS-DC120-I20CE-24020-8
Digital constant current controllers with built-in switching power supply, RS232/100M Ethernet, switchable constant light / strobe and millisecond and microsecond strobe; versions for 24V light sources and combined 24V + 5V point light sources.
Features
- Supports RS232 communication
- Built-in 24V switching power supply
- 8-channel constant current control, stable light source brightness
- Supports 4-channel 24V universal light source and 4-channel point light source
- Low trigger response time
- Supports external triggering mode
- Constant light / strobe switchable
- Supports millisecond and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install: screw or C45 rail
- 12-channel constant current control, stable light source brightness
- Supports 4/8 channels of 24V universal light sources and 8/4 channels of point light sources
- Supports RS232 / 100M Ethernet communication
- Built-in 12V switching power supply
- 4-channel constant current control
- Supports 4-way 24V general-purpose light source
- Low trigger response time (≤10us)
- Supports external trigger mode
- Normal light / strobe switchable
- Convenient installation: screw mounting or C45 card rail
- 8-channel constant current control
- Supports 8-way 24V general-purpose light source
- 16-channel constant current control
- Supports 16-way 24V general-purpose light source
Specifications
| Model | LS-DC120-I20CE-24020-8 |
|---|---|
| Brightness levels | 255 |
| Communication | RS232 communication, 100M Ethernet (printed 'Hundred Gigabit Ethernet') |
| Control | Digital (4-digit display, buttons), RS232, 100M Ethernet |
| Driving mode | Constant current |
| Max input voltage | AC220V |
| Microsecond strobe time | 1~999us |
| Millisecond strobe time | 1~999ms |
| Operating temperature | 5~50°C |
| Trigger | 5~24V external trigger, adaptable to high and low level trigger modes; edge + level |
| Trigger mode | Edge + level trigger |
| Working mode | NORMAL: 0 normally extinguished, 1 bright, 2 millisecond strobe; STROBE: 0 1~999 ms strobe, 1 10~999 microseconds strobe |
| Built-in power supply power | 120W |
| Number of channels | 8 |
| Connected light source type | 10mA~2A 24V power supply |
| Single channel instantaneous max current | 2A |
| Max output voltage | 24V |
| Luminous mode | Normal light, normal extinction, constant brightness, strobe |
| Overheat protection | Yes |
| Short circuit protection | No |
| Dimensions (mm) | 112 x 132 x 162 |
| Total output (W) | 120 |
| Shipping weight | 1.10 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Constant current hybrid controller (I20) series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-DC120-I20CE-24020-4 | 4 ch | $199.00 | 5 in stock | View |
| LS-DC200-I20CE-24020-8 | 8 ch, 200 W | $319.00 | 5 in stock | View |
| LS-DC120-I20CE-24010-4-05010-8 | 12 ch, 120 W | $379.00 | 2 in stock | View |
| LS-DC120-I20CE-24010-8-05010-4 | 12 ch, 120 W | $379.00 | 2 in stock | View |
| LS-DC200-I20CE-24020-16 | 16 ch, 200 W | $489.00 | 4 in stock | View |
