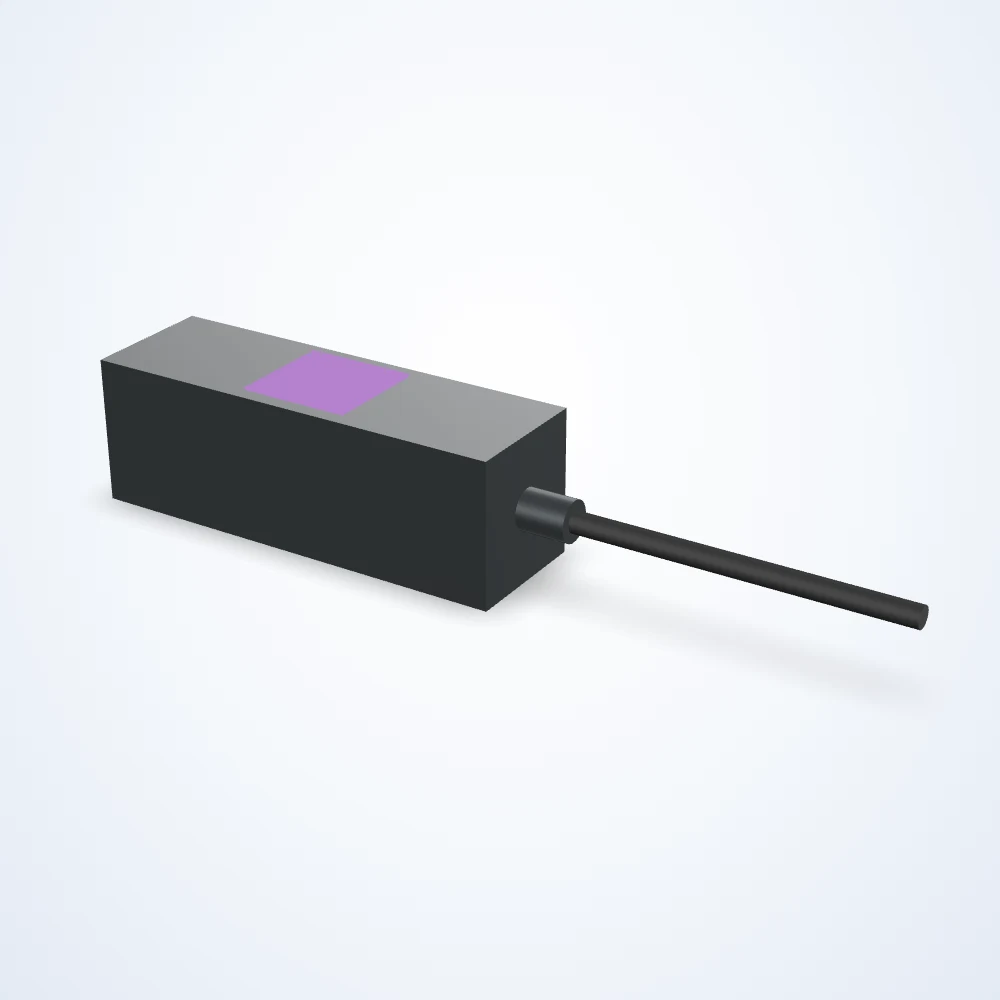

Rendered illustration: the actual product may differ in appearance.
Coaxial lights
Coaxial light, 27-152 x 26-154 mm lit area (LS-CXL-0002)
Model LS-CXL-0002
Coaxial light: illumination on the camera axis through a beam splitter, for flat, polished and engraved surfaces. 24 VDC supply; connection: flying leads. Choose colour, lit length, length, width, driver included below (272 configurations) and request a quote.
Specifications
| Model | LS-CXL-0002 |
|---|---|
| Lit width (mm) | 26 to 154 (by configuration) |
| Height (mm) | 35.7 to 163.4 (by configuration) |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Operating temperature | 25 to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / iCS2 - IC (by configuration) |
| Maximum constant on current (ma) | 60 to 2160 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 1.4 to 51.8 (by configuration) |
| Maximum input power overcurrent strobe (w) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 60 (by configuration) |
| Minimum overcurrent strobe duration (us) | 30 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
