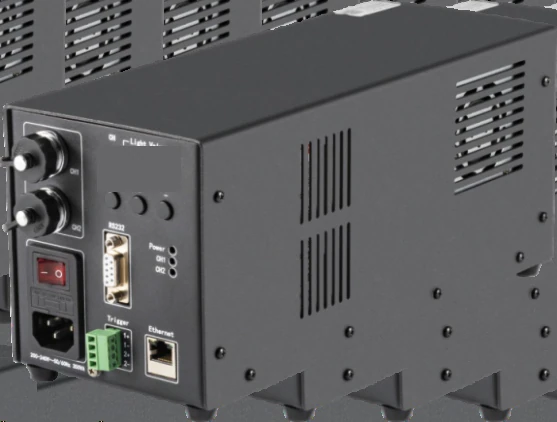

Constant current controller (CPL series, C version), 2 ch, 320 W (LS-CPL48320C-2T)
Model LS-CPL48320C-2T
Two-channel high-power constant current controller with 256-step (0-255) brightness adjustment by buttons, RS232 or Ethernet. The constant current output keeps brightness stable and prolongs light life; the external trigger is opto-isolated and settings are saved on power failure.
Features
- Constant current output ensures stable brightness and prolongs light life
- 256-step (0-255) brightness adjustment by buttons, RS232 or Ethernet
- Positive-pole / negative-pole trigger switch to choose the working mode for the application
- External trigger uses high-speed optocoupler isolation for an accurate, highly reliable trigger signal
- Power failure saving function
- 4 x M3 floor mats on the base (mats need to be removed for mounting)
Specifications
| Model | LS-CPL48320C-2T |
|---|---|
| Drive method | Constant current |
| Channels | 2 |
| Output voltage | 48V |
| Input voltage | AC100-240V 50/60Hz |
| External trigger voltage | DC5V~24V (current about 6mA) |
| Trigger delay | <100us |
| Operating temperature/humidity | 0~40 °C, 20~85% RH (non-condensing) |
| Storage temperature/humidity | 20~60 °C, 20~85% RH (non-condensing) |
| Cooling | Forced cooling |
| Light control mode | Variable current control; Panel key / RS232 / Ethernet |
| Brightness steps | 256 (0-255) |
| Max output | 6.8A (3.4A) |
| Total power | 320W |
| Output port | dia.16 air head (aviation connector) |
| External trigger port | 1+ / 1- (CH1 external trigger positive / negative), 2+ / 2- (CH2 external trigger positive / negative) |
| Front panel rating label | 200-240V~50/60Hz 350VA |
| Dimensions (mm) | 285 L x 113.5 W x 129 H (body 267 L, 123 H; 6.3 front protrusion; mounting holes 267 x 94) |
| Total output (W) | 320 |
| Shipping weight | 1.75 kg |
