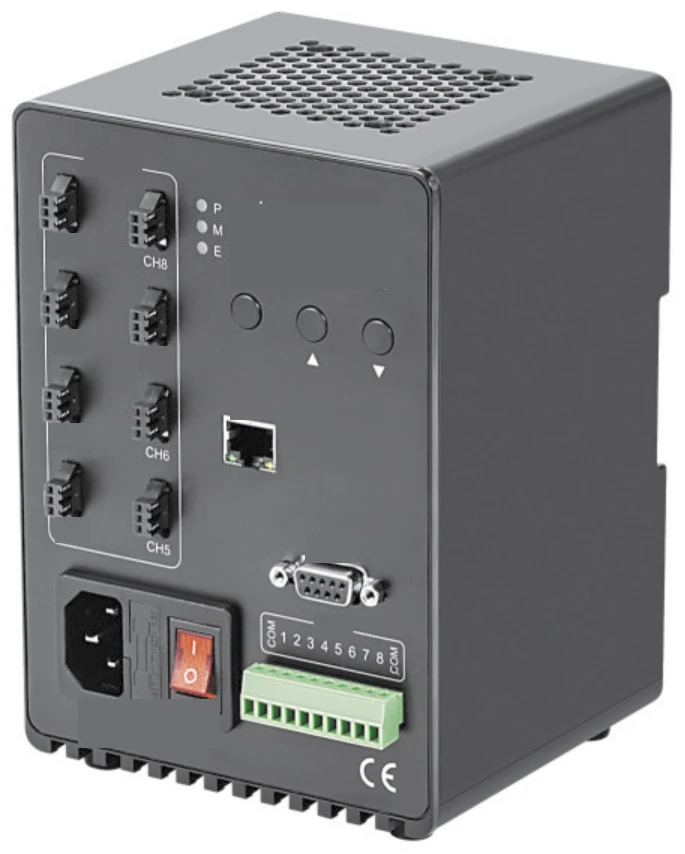

Programmable constant-current controller (CPL series), 8 ch, 96 W (LS-CPL2496C-8TD)
Model LS-CPL2496C-8TD
Programmable constant-current controller: any trigger channel can be given a trigger sequence, up to 32 trigger sequences can be programmed with brightness, pulse width and trigger source set per sequence; RS232 and Ethernet communication, screw or DIN rail mounting and high-speed optocoupler trigger input.
Features
- Programmable triggering: any trigger channel can be set up with a trigger sequence
- Up to 32 trigger sequences can be programmed; brightness, pulse width and trigger source can be set for each
- Communication: RS232 and Ethernet
- Mounting: screw or DIN rail
- External trigger input with high-speed optocoupler design, fast and reliable
Specifications
| Model | LS-CPL2496C-8TD |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant current |
| Light control mode | Variable current control; panel buttons / RS232 / Ethernet |
| Brightness levels | 0-255 |
| Pulse width output | 0-999us (ms), unit switchable |
| Input voltage | AC200-240V 50/60Hz |
| Channels | 8 |
| Output voltage | DC 24V |
| Max output current | 4A (single channel max current 2A) |
| Total power | 96W |
| Output port | SMP-03V-BC (1: output+ 2: NC 3: output-) |
| External trigger voltage | DC12-24V (current about 5.6mA) |
| Trigger delay | <10us |
| Cooling method | Forced cooling |
| Weight | 720g or less |
| Dimensions | 116 x 114.4 x 164.8 mm |
| Buttons | CH = channel / function switch (H1 = constant-on mode, H0 = constant-off mode); ▲ increase; ▼ decrease |
| Indicators | P lit at normal power-on; M lit in advanced mode; E lit on controller fault |
| Trigger port | COM (common, non-polar), 1-8 (CH1-CH8 external trigger inputs), COM; DC12-24V; one trigger can drive one or more channels; any trigger signal can set any channel brightness and pulse width |
| Mounting | Screw or DIN rail |
| Drawing dimensions (mm) | 116 W x 164.8 H (158 body) x 114.4 D (103 / 75; DIN clasp 50 x 71) |
| Total output (W) | 96 |
