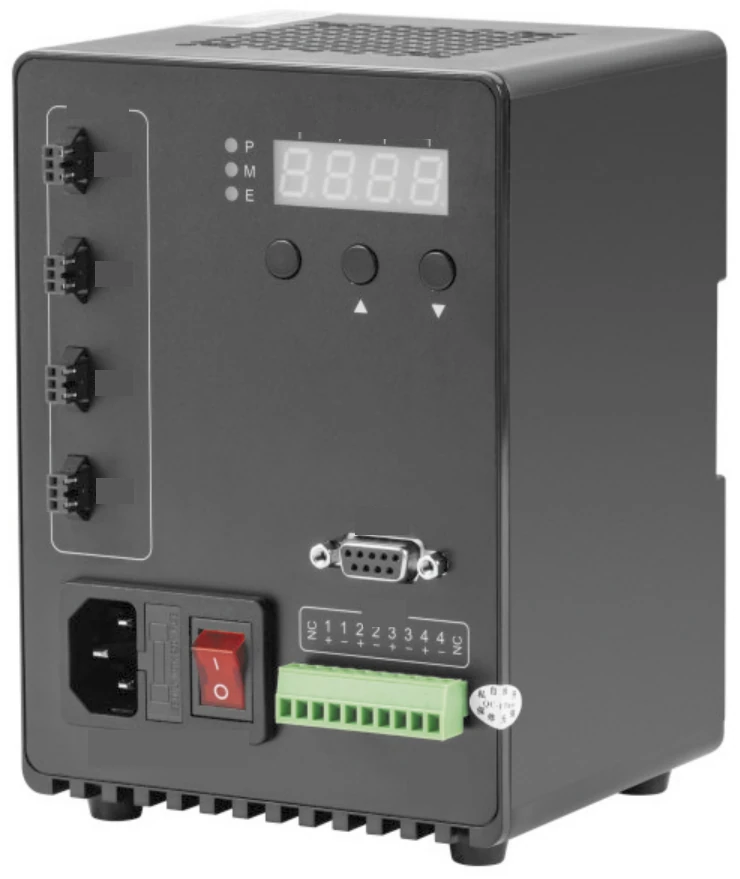

Standard constant-current controller (CPL series), 4 ch, 96 W (LS-CPL2496B-4TD)
Model LS-CPL2496B-4TD
Standard constant-current controller with automatic load-current detection, constant-on and strobe lighting in one unit, digital display with 256 brightness levels, RS232 communication using the Modbus protocol for remote control, screw or DIN rail mounting and high-speed optocoupler trigger input.
Features
- Constant-current drive, automatically detects the load current
- Constant-on and strobe lighting in one unit
- Digital display, 256 brightness levels
- RS232 communication using the Modbus protocol, remote control possible
- Mounting: screw or DIN rail
- External trigger input with high-speed optocoupler design, fast and reliable
Specifications
| Model | LS-CPL2496B-4TD |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant current |
| Light control mode | 0-255 level brightness; panel buttons / RS232 |
| Strobe pulse width | 0-999ms |
| Input voltage | AC100-240V 50/60Hz |
| Channels | 4 |
| Output voltage | DC 24V |
| Max output current | 4A (single channel max current 1A) |
| Total power | 96W |
| Output port | SMP-03V-BC (1: output+ 2: NC 3: output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <10μs |
| Cooling method | Forced cooling |
| Weight | 720g or less |
| Dimensions | 116 x 114.4 x 164.8 mm |
| Communication protocol | Modbus over RS232 |
| Buttons | CH = channel / function switch (H1 = constant-on mode, H0 = constant-off mode); ▲ increase; ▼ decrease |
| Indicators | P lit at normal power-on; M lit in advanced mode; E lit on controller fault |
| Trigger port | NC, 1+/1- ... 4+/4-, NC; DC5-24V, optocoupler isolated, NPN or PNP |
| Mounting | Screw or DIN rail |
| Drawing dimensions (mm) | 116 W x 164.8 H (158 body) x 114.4 D (103 / 75; DIN clasp 50 x 71) |
| Total output (W) | 96 |
