Constant-current controller, spot light controller (CPL series)
Light controllers

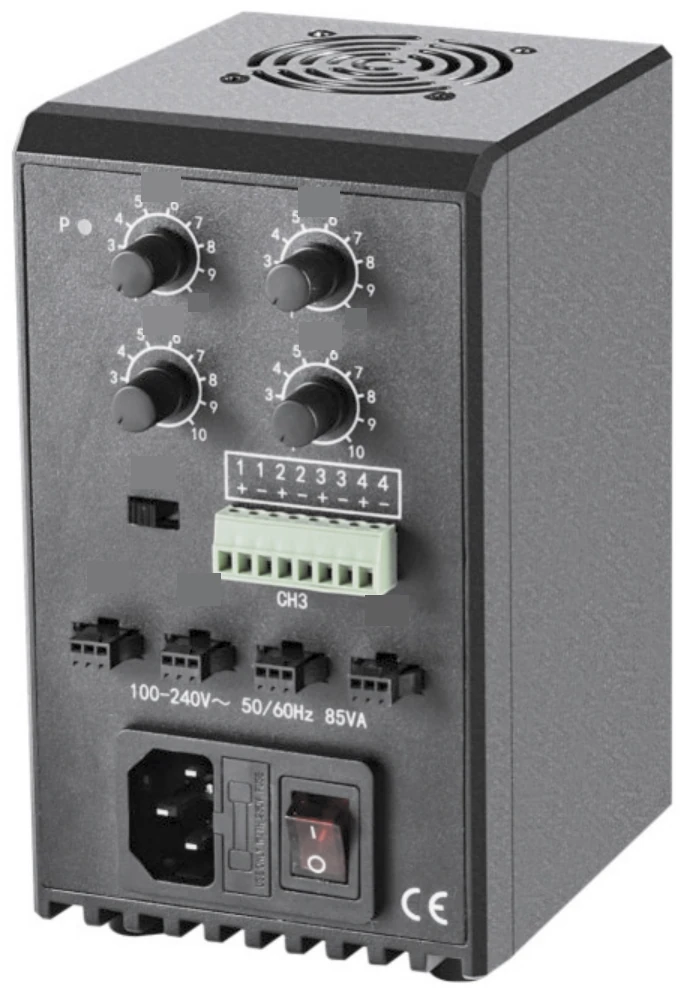

Constant-current controller, spot light controller (CPL series), 4 ch, 18 W (LS-CPL0530AJQ-4TD)
Model LS-CPL0530AJQ-4TD
Constant-current spot light controller with manual stepless brightness adjustment, a constant-on / constant-off mode switch, optocoupler-isolated external trigger and constant-current output that keeps brightness stable and extends light life; screw or standard DIN rail mounting.
Features
- Manual stepless brightness adjustment, simple operation
- Constant-on / constant-off mode switch, choose the working mode for the application
- External trigger with high-speed optocoupler isolation for a stable trigger signal
- Constant-current output keeps the light brightness stable and extends the light life
- Screw or standard DIN rail mounting
- Manual stepless brightness control
- Constant On, constant Off mode switch, choose the working mode according to the actual situation
- External trigger adopts high speed optocoupler isolation design, accurate and highly reliable trigger signal
- Constant current output ensures the stability of brightness and prolongs the life of the light
- Screw installation or standard DIN rail installation
Specifications
| Model | LS-CPL0530AJQ-4TD |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant current |
| Light mode | Variable current control; panel knob |
| Input voltage | AC100-240V 50/60Hz |
| Channel | 4 |
| Output voltage | 5V |
| Max output current | 900mA(Single channel) |
| Total power | 18W |
| Output port | SMP-03V-BC (1: NC 2: Output+ 3: Output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <20us |
| Using temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Cooling method | Natural cooling |
| Channels | 4 |
| Total output (W) | 18.0 |
| Control | Analog panel knob |
| Shipping weight | 0.50 kg |
