Coaxial lights

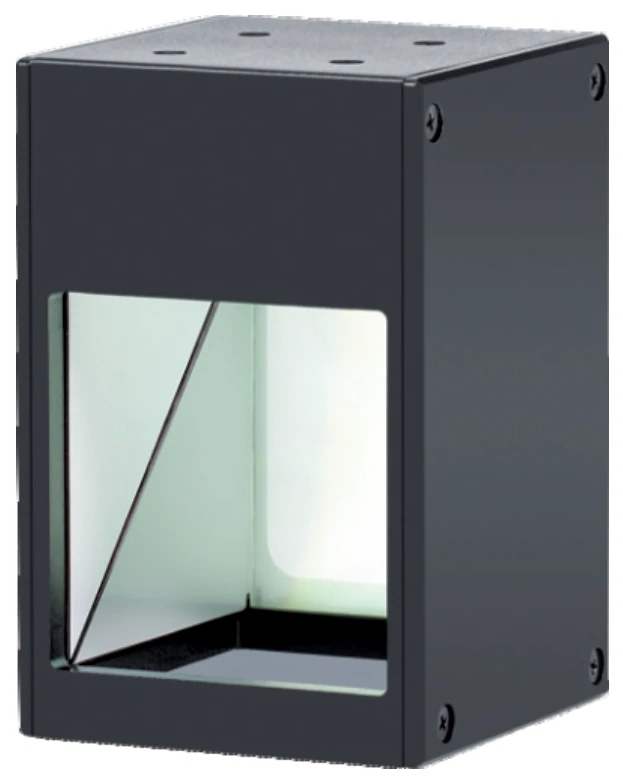

60 x 61 mm Coaxial light (CP series) (LS-CP60M60-R/G/B/W)
Model LS-CP60M60-R/G/B/W
Coaxial light with an added brightness enhancement film for higher brightness; better light directivity makes it more suitable for surface defect inspection. High uniformity, efficient heat dissipation and a specially coated beam splitter.
Features
- Brightness enhancement film added to increase the brightness
- Better light directivity, more suitable for surface defect inspection
- High uniformity brightness and clear image
- Efficient heat dissipation, prolonged life
- Specially coated beam splitter to reduce light loss
Specifications
| Model | LS-CP60M60-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable, diffuse plate |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Cable length | 500 mm (drawings) |
| Item | 2 |
| Power R (W) | 7.2 |
| Power G/B/W (W) | 7.2 |
| Emitting area (mm) | 60 x 61 |
| L (mm) | 90 |
| W (mm) | 70 |
| H (mm) | 70 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 0.55 kg |
Applications
- Scratch inspection for metal surfaces
- Smooth surface convex and pit inspection
- Character detection for smooth surfaces
- Positioning inspection for metal contours
- Size inspection for smooth objects
- QR code inspection
- Mark location inspection on circuit boards
- Dimension inspection for cell phone frames
