Coaxial lights

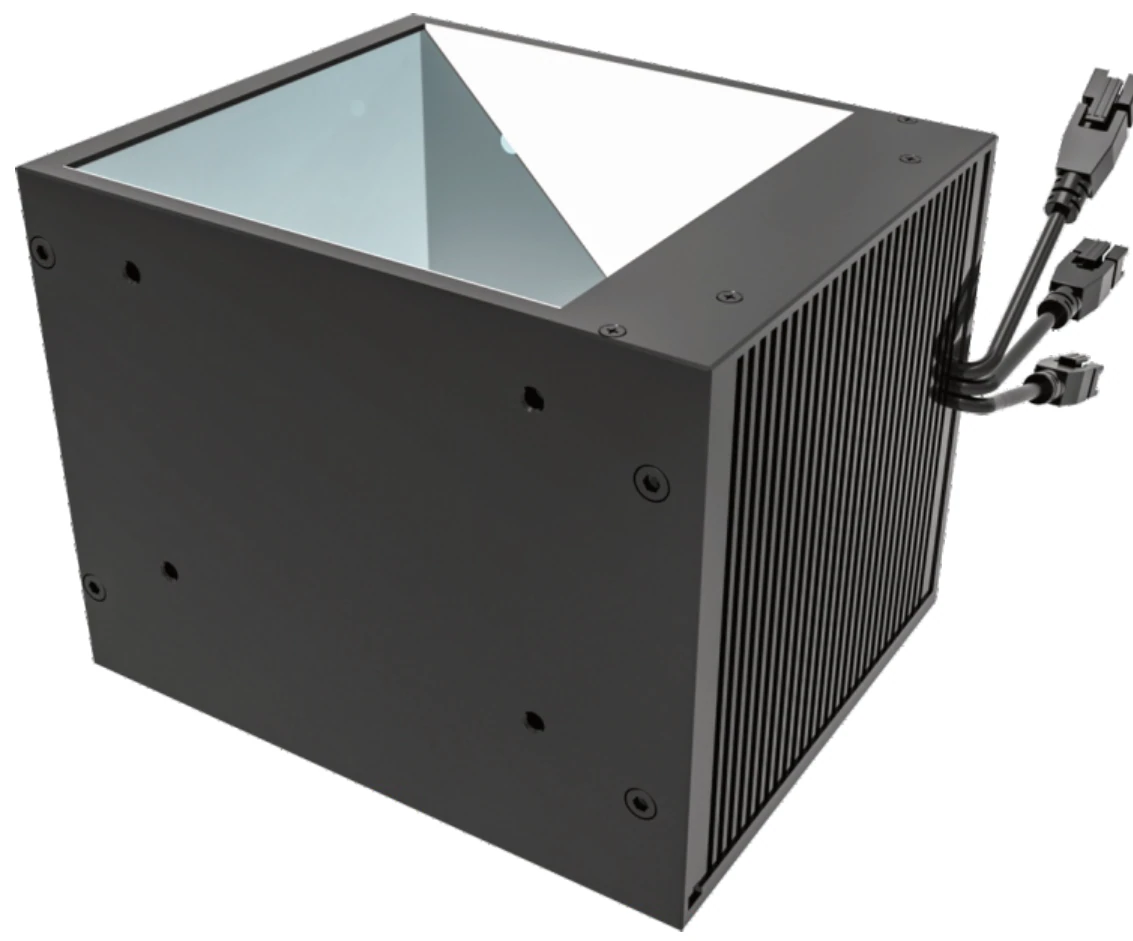

55 x 40 mm Multi-colour coaxial light, RGB series (LS-COS5540-RGBAKX-M)
Model LS-COS5540-RGBAKX-M
High-density, high-brightness multi-colour (RGB) light; colour combinations highlight 3D information of objects and each lighting group can be controlled independently, so monochrome can also be chosen.
Features
- High density LED, high brightness
- Different colour combinations highlight 3D information of objects
- Each group of lighting area can be controlled independently; monochrome can be chosen to suit different sizes of measured objects
- Optional multi-colour, easy to use for multi-colour applications
Specifications
| Model | LS-COS5540-RGBAKX-M |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-DPS / LS-APS / LS-SPS series (match the power of the light source) |
| Power (W) | 7.1 |
| Luminous dimension (mm) | 55 x 40 |
| Overall dimension (mm) | 73 x 63 x 45 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Cable | 3 cables L=500 mm |
| Shipping weight | 0.35 kg |
Applications
- Edge extraction of various colours
- Appearance inspection of various colours
- QR code and barcode reading
- Wiper surface defect inspection
- Inspection of multi-colour products
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Multi-colour coaxial light, RGB series series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-COS30-RGB-M | 30 x 32 mm | 2.1 W | $89.00 | 11 in stock | View | |
| LS-COS40-RGBS-M | 38 x 42.4 mm | 5.1 W | $109.00 | 14 in stock | View |
