Coaxial lights

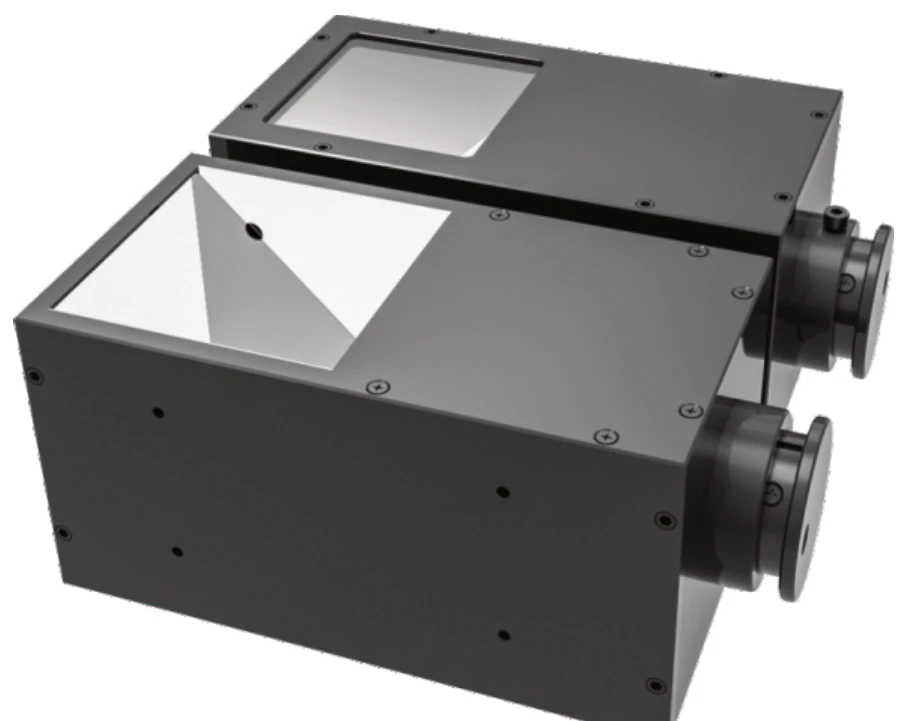

40 x 40 mm Coaxial parallel light (COPS series) (LS-COPS40-R/G/B/W)
Model LS-COPS40-R/G/B/W
Coaxial parallel light with high brightness, high uniformity and a high degree of parallelism.
Features
- High brightness
- High uniformity
- High degree of parallelism
Specifications
| Model | LS-COPS40-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-CPL0520A-4TD |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Cable length | 500 mm (drawings) |
| Item | 2 |
| Power R (W) | 3 |
| Power G/B/W (W) | 3 |
| Emitting area (mm) | 40 x 40 |
| L (mm) | 135 |
| W (mm) | 50 |
| H (mm) | 48 |
| Recommended controller | LS-CPL0520A-4TD |
| Shipping weight | 0.45 kg |
Applications
- Smooth surface scratch inspection
- Surface bump inspection
- Glue inspection
- Dimension measurement
- Screen skewing inspection
- Inspection of raised characters, scratches and other defects
- Inspection of flat hardware surface indentation, scratches and other defects
- Plane reflective object scratch and bump inspection
- Inspection of slight scratches on mobile phone screens
- Inspection of thin burrs on product profiles
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
