Coaxial lights

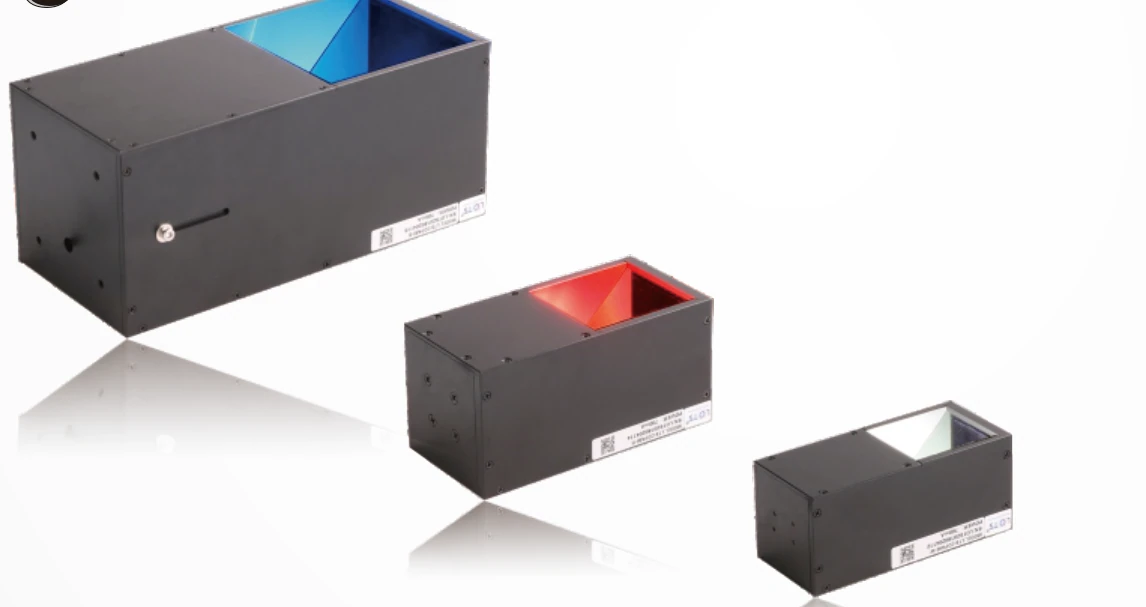

33 x 33 mm Collimated coaxial light (COPA) (LS-COPA40)
Model LS-COPA40
Coaxial light with a special optical path design for high parallelism, using high-power LEDs for high luminance; the uniform light rays are easy for software to recognize.
Features
- Special optical path design, high parallelism
- High power LED, high luminance
- Uniform light ray, easy to recognize by software
Specifications
| Model | LS-COPA40 |
|---|---|
| Adapted controller | Constant current controller |
| Light spot (LS-COPA50-W) | WD 25: dia. 50, 16350 lx; WD 100: dia. 52, 9330 lx; WD 200: dia. 55, 6435 lx |
| Customizable | viewport, length and width, colour and colour temperature, cable length, installation method |
| Cable (mm) | 500 (drawings) |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life span | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Power, R (W) | 3 |
| Power, G/B/W (W) | 3 |
| Weight (g) | 234 |
| Emitting surface (mm) | 33 x 33 (window), emitting 38 x 43.4 |
| Mounting | 4-M3 depth 5 |
| Dimension drawing | 1 |
| Common | Y |
Applications
- Defect inspection of metal surfaces
- Glass inspection
- Scratch inspection of light disks
- Drink bottleneck inspection
- Imaging example: dirty part inspection on a glass plate (LS-COPA40-B)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
