Area scan cameras

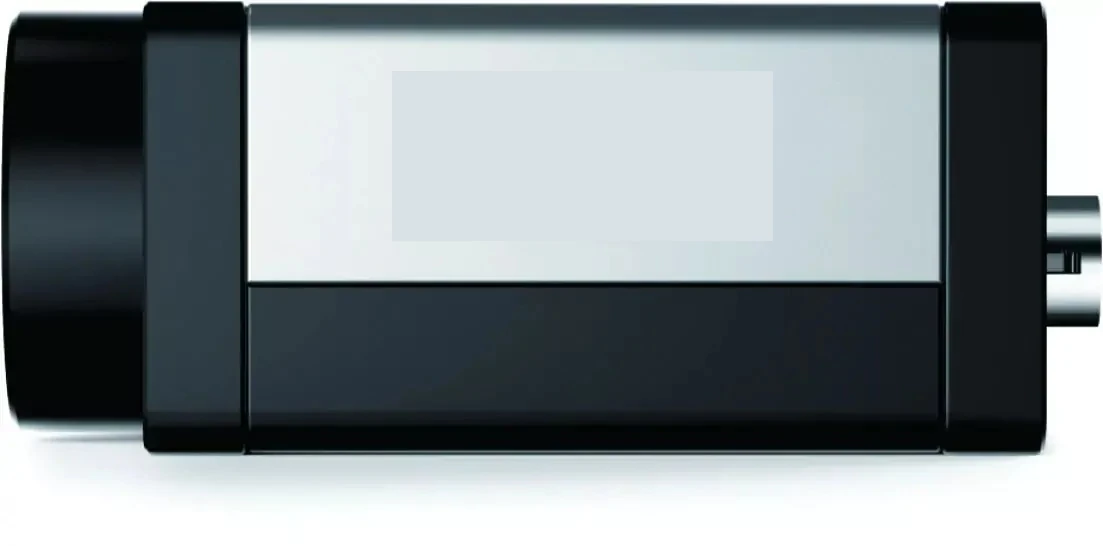

High-resolution area scan camera ( industrial camera), 65 MP, Camera Link, Mono (LS-CG650-1CM)
Model LS-CG650-1CM
High resolution, global exposure cameras.
Features
- High resolution, global exposure camera
Specifications
| Model | LS-CG650-1CM |
|---|---|
| Resolution | 9344 x 7000 |
| Frame rate (fps) | 1 |
| Sensor | GMAX3265 |
| Sensor size (mm^2) | 29.9 x 22.4 |
| Pixel (um^2) | 3.2 x 3.2 |
| Lens mount | M58(FBL 12) |
| Mono/Color | M/C |
| Data interface | CameraLink |
| Sensor type | CMOS |
| Shutter type | Global |
| Bit depth | 10 |
| Interface (datasheet) | GigE |
| Mono/Color (datasheet) | Mono |
| Pixel (datasheet, um) | 3.2x 3.2 |
| Sensor size (datasheet) | 37.3mm |
| Pixel | 65MP |
| SNR | 40dB |
| Dynamic range | 66dB |
| GPIO interface | 12 core Hirose interfaceexternal power supply,Opto-isolated input x 3opto-isolated output x 3 |
| Image format | MonoMono8/10/10PackedColorMono8BayerRGB/10/10Packed BayerGB8/10/10PackedRGB8PackedYUV422Packed |
| Binning | Support |
| Decimation | Non-support |
| ROI | Support |
| Gain | X1~X32 |
| Shutter exposure | 16μS~1S |
| Gamma | range 0-4,support LUT |
| Flat field correction | support |
| Defective pixel correction | support |
| Sync mode | Software trigger/hardware trigger/free run |
| Image storage | support 256MB |
| Storage | Storage parameters x 2 |
| Dimension | 72mm*72mm*64mm(Don't includedrear housing interface) |
| Weight | 450g |
| Power supply | DC12V-24V |
| Power consumption | 12V≈9W |
| Temperature | Storage temperature-30℃~+80℃Working temperature-30℃~+50℃ |
| I/O connector pinout (pin, signal, description) | 1 GND Ground for camera power; 2 Power Power for camera; 3 RXD RS232 Serial port receive; 4 TXD RS232 Send by serial port; 5 Line 1 Opto-coupled IO input line 1; 6 Line 2 Opto-coupled IO input line 2; 7 Line 3 Opto-coupled IO input line 3; 8 OPT_IN_GND Ground for Opto-coupled input, don't connect power; 9 Line 1 Opto-coupled IO output line 1; 10 Line 2 Opto-coupled IO output line 2; 11 Line 3 Opto-coupled IO output line 3; 12 OPT_OUT_GND Ground for Opto-coupled output, don't connect power |
| Pixel size (um) | 3.2 |
| Mono / colour | Mono |
