Area scan cameras

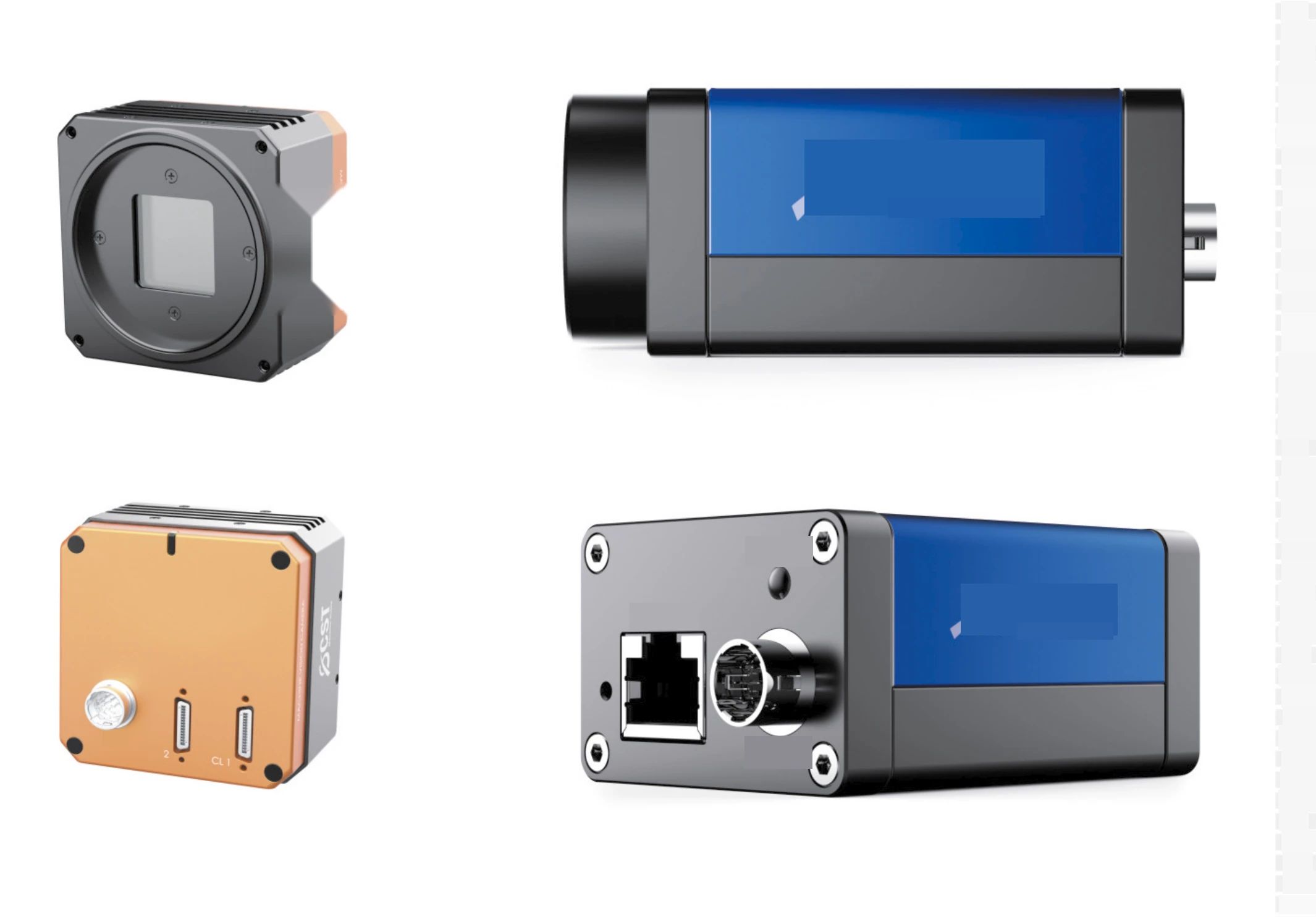

High-resolution large area scan industrial camera, 12 MP, USB3, Mono / Colour (LS-CG120-23UM/C)
Model LS-CG120-23UM/C
Ultra-high resolution, global shutter cameras.
Features
- Ultra-high resolution, global shutter camera
- GigE, USB3.0 or CameraLink interface
Specifications
| Model | LS-CG120-23UM/C |
|---|---|
| Resolution | 4096 x 3000 |
| Frame rate (fps) | 23 |
| Sensor | IMX304 |
| Optical format | 1.1" |
| Pixel size (um) | 3.45 x 3.45 |
| Shutter | Global |
| Mono / colour | M/C |
| Interface | USB3.0 |
| Camera size (mm) | 29 x 44 x 59 |
| Sensor format | 1.1" |
| Shipping weight | 0.59 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the High-resolution large area scan industrial camera series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-CG250-4.6GM/C | 26 MP, GigE, Mono / Colour | $1,849.00 | 4 in stock | View |
| LS-CG250-14UM/C | 26 MP, USB3, Mono / Colour | $2,219.00 | 2 in stock | View |
| LS-CG120-69CM/C | 12 MP, Camera Link, Mono / Colour | $2,859.00 | 3 in stock | View |
| LS-CG250-31CM | 26 MP, Camera Link, Mono | $2,859.00 | 4 in stock | View |
| LS-CR1010-8CM | 101 MP, Camera Link, Mono | $8,219.00 | 4 in stock | View |
