Home / Cameras / Area scan cameras / Area scan camera ( industrial camera)

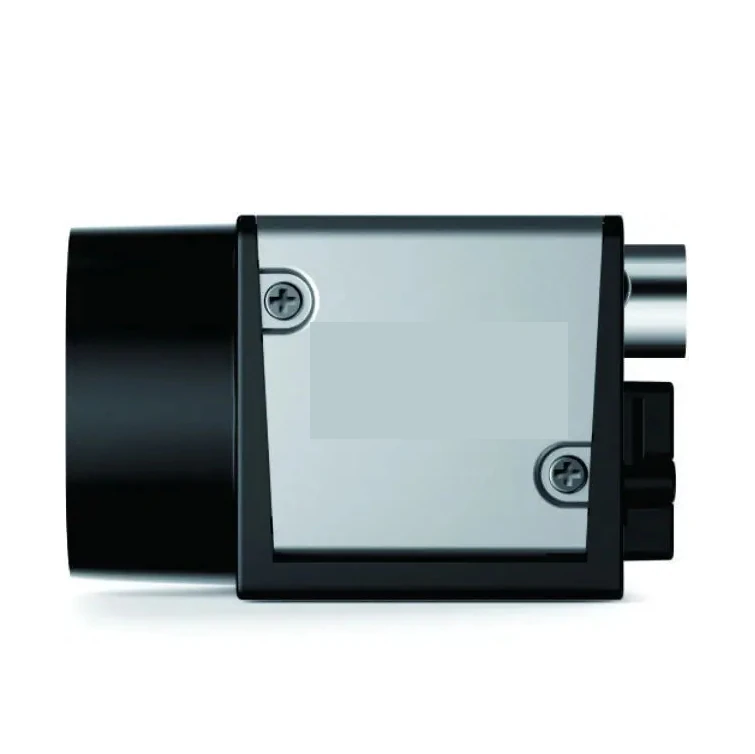

Area scan camera ( industrial camera), 3.1 MP, GigE, Mono / Colour (LS-CG032-37GM/C)

Area scan cameras

Area scan camera ( industrial camera), 3.1 MP, GigE, Mono / Colour (LS-CG032-37GM/C)

Model LS-CG032-37GM/C

High cost-performance area scan cameras with resolutions from 0.3 MP to 20 MP.

$509.00 USD
0.59 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this camera → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-CG032-37GM/C

Features

  • High performance, with resolutions ranging from 0.3MP to 20MP
  • High cost-performance; resolution covers 0.3 MP to 20 MP
  • GigE interface with PoE

Specifications

ModelLS-CG032-37GM/C
InterfaceGigE, PoE
Resolution2048 x 1536
Frame rate (fps)37.5
SensorIMX265
Optical format1/1.8"
Pixel size (um)3.45 x 3.45
ShutterGlobal
Mono / colourM/C
Camera size (mm)29 x 29 x 42
Sensor format1/1.8"
Shipping weight0.59 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Area scan camera ( industrial camera) series

ModelSizePowerPriceAvailability
LS-CG016-65GM/C1.6 MP, GigE, Mono $289.00 2 in stockView
LS-CG020-60GM/C2.0 MP, GigE, Mono / Colour $329.00 4 in stockView
LS-CG023-50GM2.3 MP, GigE, Mono3.4 W $349.00 5 in stockView
LS-CG023-50GC2.3 MP, GigE, Color3.4 W $349.00 2 in stockView
LS-CG023-50GM/C2.3 MP, GigE, Mono / Colour $349.00 3 in stockView
LS-CG050-20GM5.0 MP, GigE, Mono $389.00 5 in stockView
LS-CG050-20GC5.0 MP, GigE, Color $389.00 4 in stockView
LS-CR050-23GM5.0 MP, GigE, Mono2.8 W $389.00 3 in stockView
LS-CR050-23GC5.0 MP, GigE, Color2.8 W $389.00 3 in stockView
LS-CG050-20GM/C5.0 MP, GigE, Mono / Colour $389.00 5 in stockView
LS-CR050-23GM/C5.0 MP, GigE, Mono / Colour $389.00 2 in stockView
LS-CG053-20GM5.3 MP, GigE, Mono3.8 W $449.00 3 in stockView
LS-CG053-20GC5.3 MP, GigE, Color3.8 W $449.00 5 in stockView
LS-CG053-20GM/C5.3 MP, GigE, Mono / Colour $449.00 3 in stockView
LS-CG013-60GM20 MP, GigE, Mono2.8 W $559.00 4 in stockView
LS-CR120-9GM12 MP, GigE, Mono $559.00 4 in stockView
LS-CR120-9GC12 MP, GigE, Color $559.00 3 in stockView
LS-CR200-6GM20 MP, GigE, Mono3.4 W $559.00 2 in stockView
LS-CR200-6GC20 MP, GigE, Color3.4 W $559.00 3 in stockView
LS-CR120-9GM/C12 MP, GigE, Mono / Colour $559.00 2 in stockView
LS-CR200-6GM/C20 MP, GigE, Mono / Colour $559.00 5 in stockView
LS-CR100-7GM/C11 MP, GigE, Mono / Colour $859.00 3 in stockView
LS-CG080-13GM8.8 MP, GigE, Mono3.2 W $1,289.00 5 in stockView
LS-CG120-9GM/C12 MP, GigE, M/C $1,379.00 4 in stockView

See all 35 models in the Area scan camera ( industrial camera) series
