Machine vision lenses

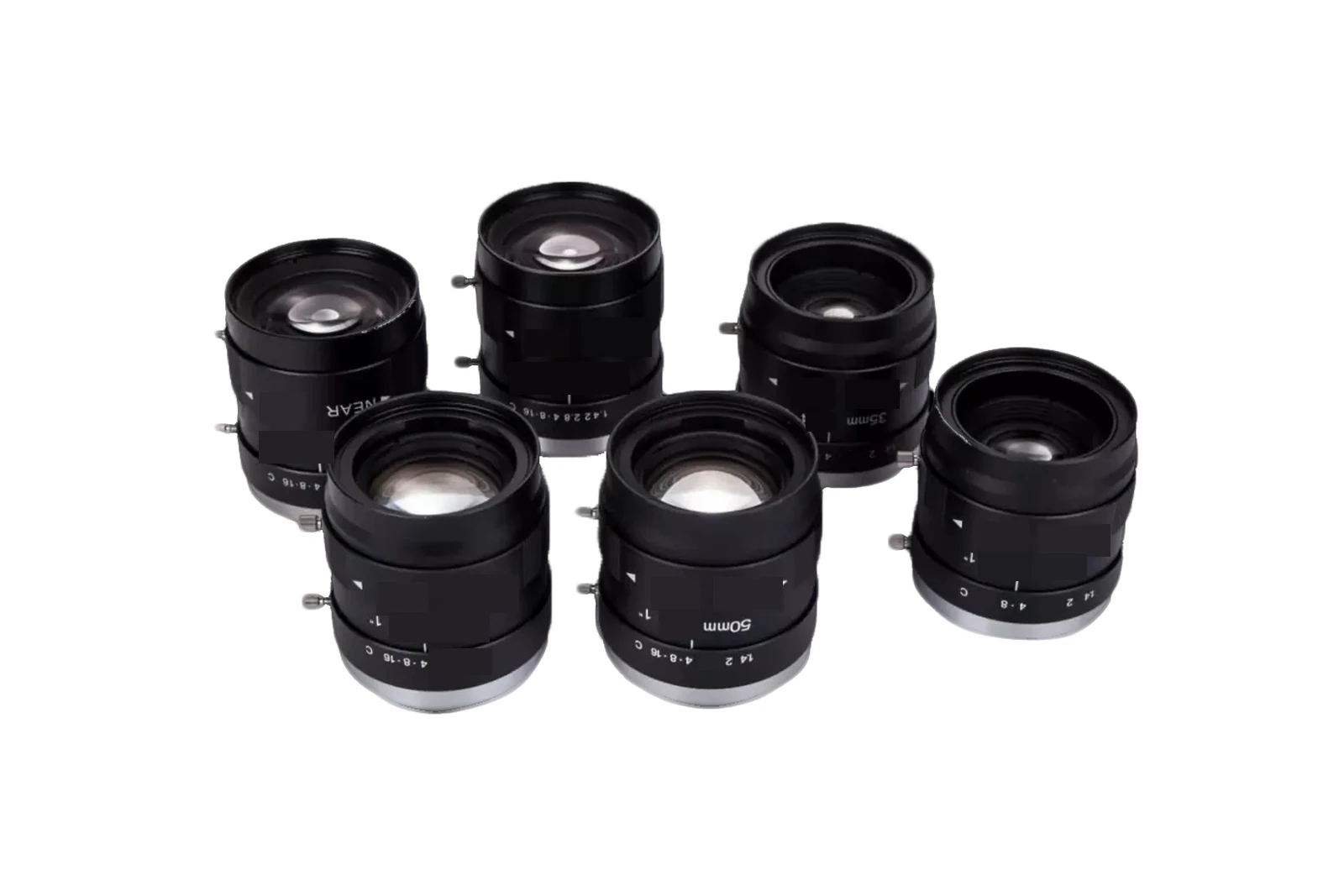

Industrial lens, 1" 5MP FA lens, 16 mm, 1", C-mount (LS-C1614-5M)
Model LS-C1614-5M
Specifications
| Model | LS-C1614-5M |
|---|---|
| Mount | C Mount |
| Max image surface size | 1" |
| Focal length (mm) | 16 |
| Aperture | 1.4 |
| FOV @ WD 200 (H x V), 1" sensor | 167.11 x 125.26 |
| FOV @ WD 200 (H x V), 2/3" sensor | 110.53 x 93.42 |
| FOV @ WD 200 (H x V), 1/2" sensor | 84.21 x 63.16 |
| TV distortion | <0.2% |
| Min distance | 0.1M |
| Filter thread | M46 x P0.75 |
| Interface | C Mount |
| Sensor format | 1" |
| Resolution (MP) | 5 |
| Field of view | 167.11 x 125.26 |
| Shipping weight | 0.38 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Industrial lens, 1" 5MP FA lens series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-C1214-5M | 12.5 mm, 1", C-mount | $189.00 | 2 in stock | View |
| LS-C2514-5M | 25 mm, 1", C-mount | $199.00 | 3 in stock | View |
| LS-C3514-5M | 35 mm, 1", C-mount | $219.00 | 2 in stock | View |
| LS-C5014-5M | 50 mm, 1", C-mount | $239.00 | 5 in stock | View |
| LS-C7518-5M | 75 mm, 1", C-mount | $269.00 | 5 in stock | View |
